Volkswagen Tiguan Service and Repair Manual: Display Control Head, Removing and Installing

Display Control Head, Removing and Installing, Climatic

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-
  • Vehicle Diagnostic Tester

Removing

Note

  • The controls consist of two separable housings. Before removing controls, bring rotary buttons into the following position:
  • Heater control to "cold"
  • Blower to "0"
  • Air flow direction to "footwell"



  • Remove the trim from the heater and A/C controls.

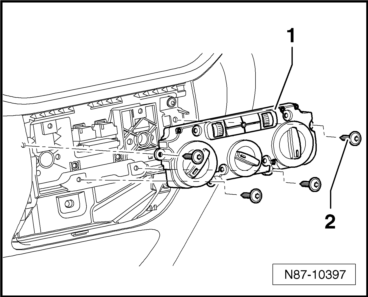

  • Remove the bolts -2 (4.2 x 45) and 3 (4.2 x 16)- and the controls -1- from the center console.

Volswagen Tiguan. N87-10397

Tightening specification for the bolts -2 and 3-: 1.5 +- 0.2 Nm.

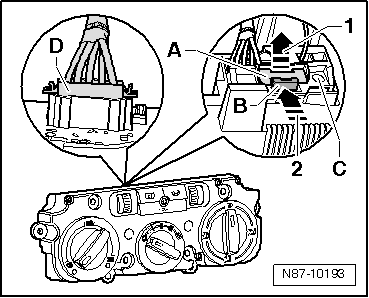

  • Release the connector -A- by pulling it in the direction of -arrow 1-.
  • Press the connector lock -B- toward the connector in direction of -arrow 2- and remove the connector -C-.
  • Loosen the connector lock -D- and remove the connector -D-.

Volswagen Tiguan. N87-10193

Installing

Installation is performed in reverse order of removal, make sure when doing so that the rotary buttons have the same position as when removing.

Display and Control Head, Removing and Installing, Electric-Manual Climate Control System and Climatronic

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-
  • Vehicle Diagnostic Tester

Note

The Climatronic Control Module -J255- and the Front A/C Display Control Head -E87- are one component that cannot be disassembled.

Removing

  • Remove the trim from the heater and A/C controls.

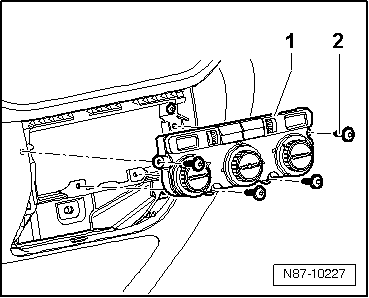

  • Remove the bolts -2- (1.5 +- 0.2 Nm) and the Front A/C Display Control Head -E87--1- from the instrument panel.
  • Disconnect the connectors on the Front A/C Display Control Head -E87-.

Volswagen Tiguan. N87-10227

Installing

Install in reverse order of removal.

Procedure for Checking and Adjusting Components

Special tools and workshop equipment required

  • Vehicle Diagnostic Tester

Select "Guided Fault Finding" on the Vehicle Diagnostic Tester

After all control modules have been checked:

  • Press the "Go to" button.
  • Select "Function/component selection".
  • Select "Body".
  • "Heating, Ventilation and Air Conditioning (Repair group 01; 80 through 87)".
  • Select "01 - On Board Diagnostic (OBD) capable systems".
  • Select "Climatronic" or "Climatic".
  • Select "Functions"
  • "Basic setting".
  • "Check cooling output".
  • "Read measured value block".
    Overview - Display Control Head
    Overview - Display Control Head, Climatic through 11/08/2010 Heated Driver Seat Adjuster -E94- (optional) Pressing the "AC" Button Switches the A/C On. Rear Window Defogger Button -E230- Instru ...

    Multi-Pin Connector Assignment on Back of Display Control Head
    Multi-Pin Connector Assignment on Back of Display Control Head, Climatic Special tools and workshop equipment required Test Box Kit - 105 Pin Test Box Kit -VAG1598/42- Test Box Kit - Adapter 47 -VA ...
