Component Location Overview - in Front Vehicle Interior

Volswagen Tiguan. Component Location Overview - in Front Vehicle Interior

  1. Instrument Panel
  2. Center Vent
    • Vent, Removing.
  3. Front Passenger Vent
    • Vent, Removing.
  4. Heating and Ventilation Controls
    • With Fresh Air/Recirculation Door Switch -E159-
    • Also with Immediate Heating Button -E537- in vehicles with auxiliary heater
    • Removing the controls.
    • On vehicles with seat heating also with Heated Driver Seat Adjuster -E94- and Heated Front Passenger Seat Adjuster -E95-
  5. Fresh/Recirculated Air Door Motor -V154-
    • Removing.
  6. Right Footwell Vent
    • Removing and installing.
  7. Fresh Air Blower -V2-
    • Removing.
  8. Fresh Air Blower Series Resistor with Fuse -N24-
    • Removing and installing.
  9. Partition from Heater
    • Removing.
  10. Closure Caps
    • Only in vehicles without air duct to vent installed in center console at rear
  11. Air Routing
    • To remove, the center console must be removed first.
  12. Dust and Pollen Filter
    • With EVAP canister
    • Removing and installing.
  13. Connection
    • For the center console air duct
    • To remove, the center console must be removed first.
  14. Air Outlet Grille
    • Depending on vehicle equipment
  15. Right Footwell Rear Channel
    • Removing and installing.
  16. Left Footwell Rear Channel
    • Removing and installing.
  17. Screw
    • Quantity: 8
  18. Adapter for Controls
  19. Heater Core
    • Replace all the coolant after replacing the heater core.
    • Removing and installing.
  20. Left Footwell Vent
    • Removing and installing.
  21. Temperature Control Door Release Cable
    • Removing and installing.
  22. Flexible Shaft
    • Removing and installing.
  23. Heater
    • Removing and installing.
    • Disassembling and Assembling.

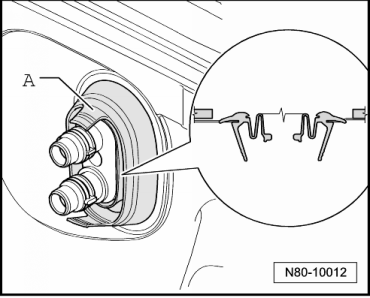

Installation Position of Seal for Heater and Engine Compartment

  • First insert the seal between the heater and engine compartment -A- into the plenum chamber bulkhead and then place on the heater core.

Volswagen Tiguan. N80-10012

Note

The installation position must be observed to prevent water from entering the vehicle interior.

    Heating, Ventilation
    ...

    Heater
    Overview - Heater Temperature Control Door Adjuster Removing and installing. Bracket Cover Fresh/Recirculated Air Door Motor -V154- Check using the Vehicle Diagnostic Tester. Removin ...
