Volkswagen Tiguan Service and Repair Manual: General Information

Note

  • Familiarity with the function and operation of the parallel parking assistance is needed if there are customer concerns.
  • Refer to Owner's Manual.

The parallel parking assistance assists the driver when backing up to parallel park in a spot on the driver or passenger side. When parallel parking assistance is activated and the vehicle is moving forward less than 35 km/h, ultrasonic sensors scan for a suitable parking space. When a suitable parking space is found, the parallel parking assistance directs the driver to drive past the space until the vehicle will be able to parallel park in one movement. When reverse gear is engaged, the parallel parking assistance controls the EPS (electronic power steering = electromechanical power steering) which steers the vehicle along a calculated route into the parking space. During this time, the drive still controls the accelerator, clutch and brake pedals and determines the vehicle parking speed. During the parking process, the parallel parking assistance sensors and the parking distance sensors are used.

The parking process with the parallel parking assistance will be interrupted under the following conditions:

  • The Parallel Parking Assistance Button -E581- switches off the parallel parking assistance.
  • The ignition is switched off
  • The parking speed is too high (> 7 km/h)
  • The driver grabs the steering wheel during the parking process
  • Disengaging reverse gear
  • The time limit for the vehicle standing still is exceeded (approx. 30 seconds)
  • The ESP is switched off or on
  • The ASR is switched on
  • The vehicle is towing a trailer
  • The parking aid is on
  • The sensor recognize a condition, which would cause damage to the vehicle
  • System malfunction

WARNING

  • The driver is responsible for parking the vehicle.
  • The parallel parking assistance does not replace the attention of the driver.
  • The sensors have dead zones, whereby it cannot recognize people or other objects.
  • The sensors may not always detect small children and animals.

The parallel parking assistance system consists of:

  • Parallel Parking Assistance Control Module -J791-
  • Left Front Parallel Parking Assistance Sensor -G568-
  • Right Front Parallel Parking Assistance Sensor -G569-
  • Left Rear Parallel Parking Assistance Sensor -G716-
  • Right Rear Parallel Parking Assistance Sensor -G717-
  • Left Front Parking Aid Sensor -G255-
  • Left Front Center Parking Aid Sensor -G254-
  • Right Front Center Parking Aid Sensor -G253-
  • Right Front Parking Aid Sensor -G252-
  • Front Parking Aid Warning Buzzer -H22-
  • Parallel Parking Assistance Button -E581-
  • Parallel Parking Assistance Indicator Lamp -K241-
  • Push Button Illumination Bulb -L76-

Malfunction Recognition and Malfunction Indicator:

The parallel parking assistance system is equipped with OBD which assists in Fault Finding.

Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" mode for Fault Finding.

Perform the output diagnostic test mode to check the entire parallel parking assistance system.

Overview - Parallel Parking Assistance

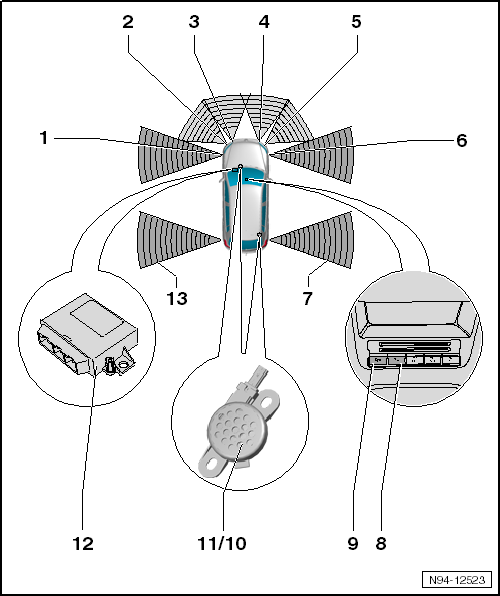

Volswagen Tiguan. Overview - Parallel Parking Assistance

  1. Left Front Parallel Parking Assistance Sensor -G568-
    • Component location: in the front bumper cover
    • Removing and installing.
    • Checking.
    • sensor, replacing.
    • Sensor mount, replacing.
  2. Left Front Parking Aid Sensor -G255-
    • Component location: in the front bumper cover
    • Removing and installing.
    • Checking.
    • sensor, replacing.
    • Sensor mount, replacing.
  3. Left Front Center Parking Aid Sensor -G254-
    • Component location: in the radiator grille
    • Removing and installing.
    • Checking.
    • sensor, replacing.
    • Sensor mount, replacing.
  4. Right Front Center Parking Aid Sensor -G253-
    • Component location: in the radiator grille
    • Removing and installing
    • Checking
    • sensor, replacing
    • Sensor mount, replacing
  5. Right Front Parking Aid Sensor -G252-
    • Component location: in the front bumper cover
    • Removing and installing
    • Checking
    • Sensor, replacing
    • Sensor mount, replacing
  6. Right Front Parallel Parking Assistance Sensor -G569-
    • Component location: in the front bumper cover
    • Removing and installing
    • Checking
    • sensor, replacing
    • Sensor mount, replacing
  7. Right Rear Parallel Parking Assistance Sensor -G717-
    • Component location: in the rear bumper cover
    • Removing and installing
    • Checking.
    • Sensor, replacing
    • Sensor mount, replacing
  8. Front Parking Aid Button -E266-
    • Component location: in the center console storage compartment in front of the selector lever
    • Removing and installing
    • Checking
  9. Parallel Parking Assistance Button -E581-
    • Component location: in the center console storage compartment in front of the selector lever
    • Removing and installing.
    • Checking.
  10. Rear Parking Aid Warning Buzzer -H15-
    • Component location: behind the right side wall trim in the luggage compartment
    • Removing and installing.
    • Volume, adjusting.
    • Tone, adjusting.
  11. Front Parking Aid Warning Buzzer -H22-
    • Component location: in the driver footwell above the instrument panel relay panel on the left side
    • Removing and installing.
    • Volume, adjusting.
    • Tone, adjusting.
  12. Parallel Parking Assistance Control Module -J791-
    • Component location: in the driver footwell above the instrument panel relay panel on the left side
    • Removing and installing.
    • Coding.
    • Bolt tightening specification: 5 Nm
  13. Left Rear Parallel Parking Assistance Sensor -G716-
    • Component location: in the rear bumper cover
    • Removing and installing.
    • Checking.
    • Sensor, replacing.
    • Sensor mount, replacing.
    Parallel Parking Assistance
    ...

    Parallel Parking Assistance Control Module -J791-
    Parallel Parking Assistance Control Module -J791-, Removing and Installing The Parallel Parking Assistance Control Module -J791- is located behind the storage compartment in the driver footwell above ...
