Volkswagen Tiguan Service and Repair Manual: License Plate Lamp

License Plate Lamp -X-

License Plate Lamp -X-, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1783 - 2-10Nm -VAG1783-

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.

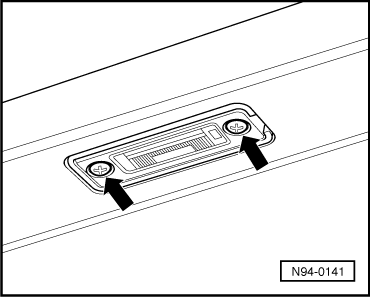

  • Remove the screws -arrows-.
  • Remove the License Plate Lamp -X-. Pay attention to the wires still connected.

Volswagen Tiguan. N94-0141

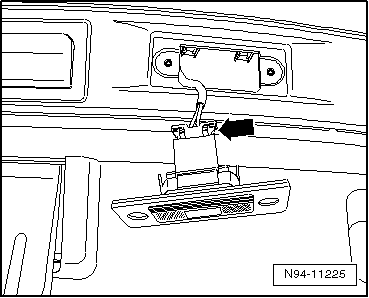

  • Disconnect the connector -arrow-.

Volswagen Tiguan. N94-11225

Installing

Install in reverse order of removal. Note the following:

Note

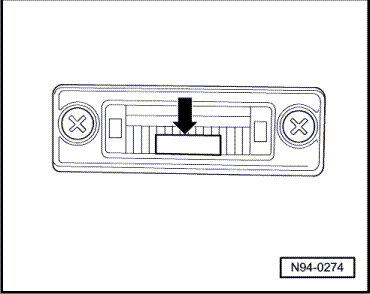

There is a small silver protective strip -arrow- applied to the license plate lamp diffusion lens. This strip must always face the bumper when installing the diffusion lens.

Volswagen Tiguan. N94-0274

  • Tighten the screws -arrows- to 1.2 Nm.

Volswagen Tiguan. N94-0141

License Plate Lamp Bulb, Replacing

Special tools and workshop equipment required

  • Torque Wrench 1783 - 2-10Nm -VAG1783-

Removing

  • Remove the license plate lamp.

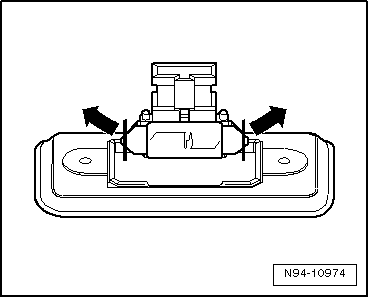

  • Push the contact plates in the direction of -arrow- and remove the bulb.

Volswagen Tiguan. N94-10974

License Plate Lamp -X- bulb: tubular bulb 12V, 5W

Installing

Note

There is a small silver protective strip -arrow- applied to the license plate lamp diffusion lens. This strip must always face the bumper when installing the diffusion lens.

Volswagen Tiguan. N94-0274

  • Tighten the screws to 1.2 Nm.

Volswagen Tiguan. N94-0141
