Volkswagen Tiguan Service and Repair Manual: Tail Lamps

Side Panel Tail Lamps

General Information

Note

Additional information:

  • Refer to Self Study Program; No 404; The Tiguan.
  • Refer to → Wiring diagrams, Troubleshooting & Component locations

Malfunction Recognition and Malfunction Indicator:

Vehicle electrical system control is equipped with OBD which assists in Fault Finding.

Use the Vehicle Diagnostic Tester in "Guided Fault Finding".

Note

  • The following illustrations show the taillights in the left side panel. Working on the taillights in the right side panel is identical.
  • The side panel tail lamps include, in addition to the turn signal bulb, and additional one-filament bulb, which functions as a brake lamp and tail lamp.

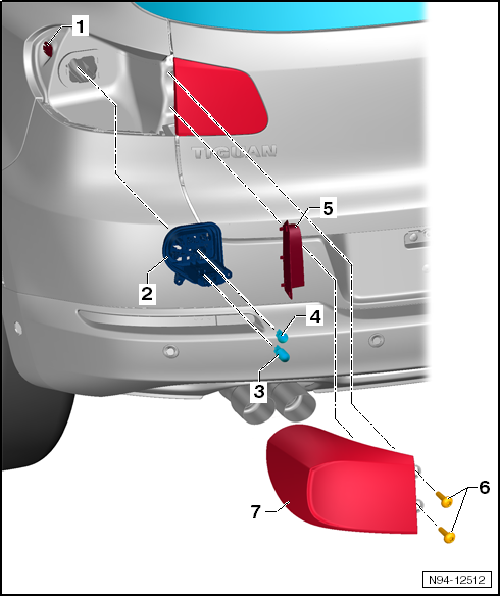

Overview - Side Panel Tail Lamps

Volswagen Tiguan. Overview - Side Panel Tail Lamps

  1. Side Locking Mechanism
  2. Bulb Holder
    • Screws: 1.5 Nm
    • Removing and Installing
  3. Left Brake/Tail Lamp Bulb -M21- or Right Brake/Tail Lamp Bulb -M22-
    • 12V, P21W
    • Replacing.
  4. Left Rear Turn Signal Bulb -M6- or Right Rear Turn Signal Bulb -M8-
    • 12V, 21W
    • Replacing.
  5. Trim
  6. Screws
    • 3 Nm
  7. Side Panel Tail Lamp Housing
    • Removing and Installing.

Side Panel Tail Lamps, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1783 - 2-10Nm -VAG1783-

Note

The following illustrations show the procedure for removing and installing of the tail lamps in the side panel on the left side. Removing and installing the tail lamps in the side panel on the right side is identical.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.

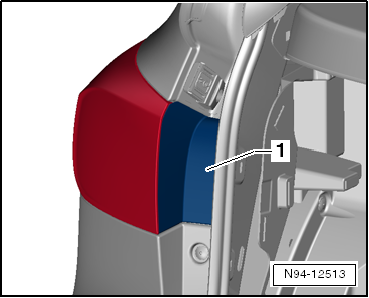

  • Remove the trim -1-.

Volswagen Tiguan. N94-12513

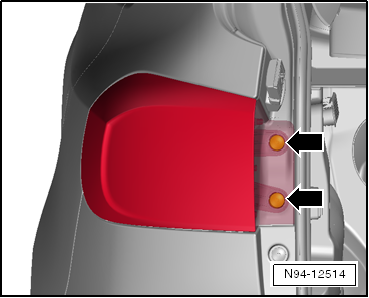

  • Remove both screws -arrows-.

Volswagen Tiguan. N94-12514

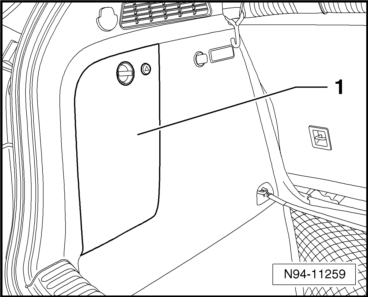

  • Open the flap -1- in the luggage compartment side panel.

Volswagen Tiguan. N94-11259

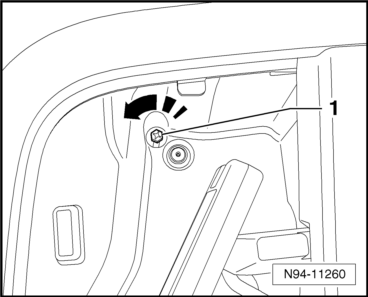

  • Turn the screw -1- all the way approximately 90º in the direction of -arrow-.

Volswagen Tiguan. N94-11260

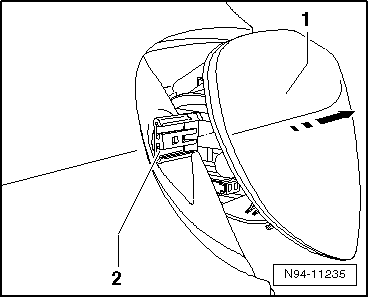

  • Remove the tail lamps -1- downward from the retainer -2- in the direction of -arrow-. Pay attention to the wires still connected.

Volswagen Tiguan. N94-11235

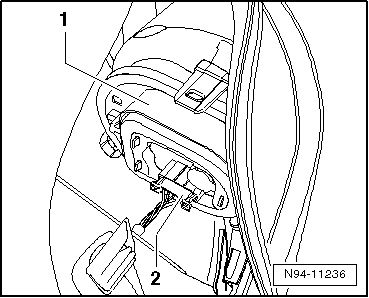

  • Disconnect the connector -2- and remove the tail lamps -1-.

Volswagen Tiguan. N94-11236

Installing

Install in reverse order of removal. Note the following:

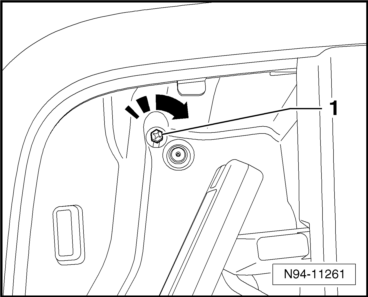

  • Turn the locking screw -1- all the way approximately 90º in the direction of -arrow- and lock the flap in the side panel.

Volswagen Tiguan. N94-11261

  • Connect the connector -2- so that it clicks.

Volswagen Tiguan. N94-11236

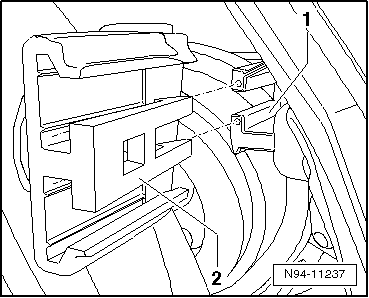

  • Slide the mount -1- into the side retainer -2- and lock it secure.

Volswagen Tiguan. N94-11237

  • Tighten both screws in the tail lamp housing -arrows- to the tightening specification given in the assembly overview.
  • Install the trim.
  • Check the functionality and the gap dimensions of the tail lamp to the body after installing it.

Volswagen Tiguan. N94-12514

Side Panel Tail Lamp Bulb, Replacing

Note

  • The following illustrations show the procedure for replacing the Left Tail Lamp Bulb -M4- in the side panel tail lamp on the left side. Replacing the Right Tail Lamp Bulb -M2- in the side panel tail lamp on the right side is identical.
  • The tail lamps works as a brake and tail lamp, depending on how it is activated.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.
  • Remove the side panel tail lamps.

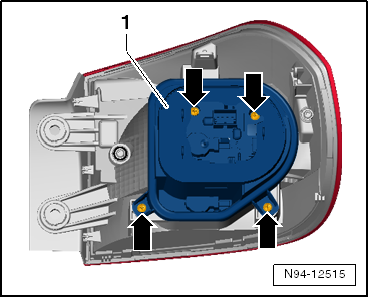

  • Remove the four screws -arrows- and then remove the bulb holder -1- from the tail lamp.

Volswagen Tiguan. N94-12515

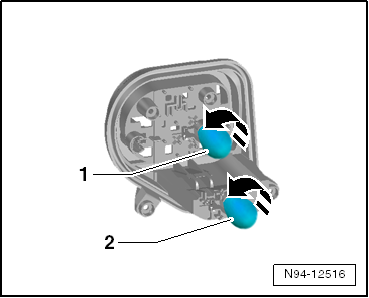

  • Push the tail lamps -1- into the bulb socket, turn it in the direction of -arrow- and remove it from the bulb holder.

Volswagen Tiguan. N94-12516

Tail lamps: 12V, 21W

Installing

Install in reverse order of removal. Note the following:

  • Tighten the screws to the tightening specification given in the overview.

Side Panel Turn Signal Bulbs, Replacing

Note

The following illustrations show the procedure for replacing the Left Rear Turn Signal Bulb -M6- in the side panel tail lamp on the left side. Replacing the Right Rear Turn Signal Bulb -M8- in the side panel tail lamp on the right side is identical.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.
  • Remove the side panel tail lamps.
  • Remove the four screws -arrows- and then remove the bulb holder -1- from the tail lamp.

Volswagen Tiguan. N94-12515

  • Push the turn signal bulb -2- into the bulb socket, turn it in the direction of -arrow- and remove it from the bulb holder.

Volswagen Tiguan. N94-12516

Turn signal bulb: 12V 21W

Installing

Install in reverse order of removal. Note the following:

  • Tighten the screws to the tightening specification given in the overview.

Rear Lid Tail Lamps

General Information

Note

Additional information:

  • Refer to Self Study Program; No 404; The Tiguan.
  • Refer to → Wiring diagrams, Troubleshooting & Component locations

Malfunction Recognition and Malfunction Indicator:

Vehicle electrical system control is equipped with OBD which assists in Fault Finding.

Use the Vehicle Diagnostic Tester in "Guided Fault Finding".

Note

  • The following illustrations show the work procedures on the rear lid tail lamp on the left side of a RHD vehicle. Working on the right rear lid tail lamp is identical.
  • USA and Canada vehicles do not have a rear fog lamp.

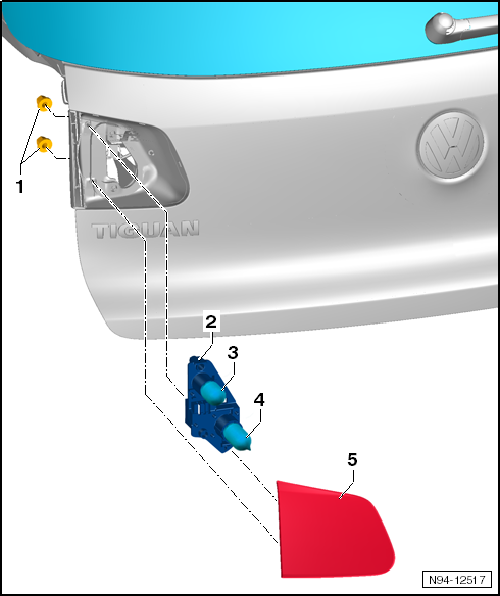

Overview - Rear Lid Tail Lamp

Volswagen Tiguan. Overview - Rear Lid Tail Lamp

  1. Nuts
    • 3 Nm
    • Follow the tightening sequence.
  2. Bulb Holder
    • Removing and installing.
  3. Right Tail Lamp Bulb -M2- or Left Tail Lamp Bulb -M4-
    • Replacing.
  4. Left Rear Fog Lamp Bulb -L46- or Right Rear Fog Lamp Bulb -L47-
    • Not available for North America
  5. Tail Lamp Housing in Rear Lid
    • Removing and installing.

Rear Lid Tail Lamp, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1783 - 2-10Nm -VAG1783-

Note

The following illustrations show the procedure for removing and installing the rear lid tail lamp on the left side. Removing and installing the rear lid tail lamp on the right side is identical.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.

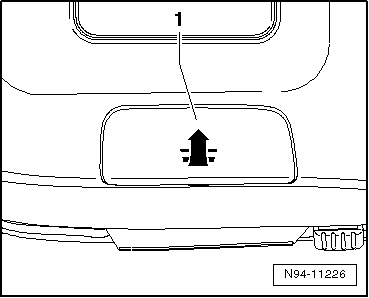

  • Unclip the service cover -1- and remove it from the trim panel in the direction of -arrow-.

Volswagen Tiguan. N94-11226

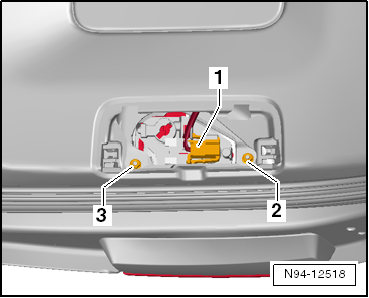

  • Disconnect the connector -1-.
  • Remove the nuts -2- and -3- and remove the tail lamp from the rear lid.

Volswagen Tiguan. N94-12518

Installing

Install in reverse order of removal. Note the following:

Note

When mounting the tail lamp connector into the rear lid, it must "audibly" latch.

  • Install the tail lamp into the opening in the body and lift it upward in the center.
  • Tighten the upper nut -2- first and then the lower nut -3- to the to the tightening specification.
  • Check the functionality and the gap dimensions of the tail lamp to the body after installing it.

Volswagen Tiguan. N94-12518

Rear Lid Tail Lamp Bulb, Replacing

Note

The following illustrations show the procedure for replacing the Left Tail Lamp Bulb -M4- on a RHD vehicle. Replacing the Right Tail Lamp Bulb -M2- is identical.

Removing

  • Switch off the ignition and all electrical consumers and remove the ignition key.
  • Unclip the service cover -1- and remove it from the trim panel in the direction of -arrow-.

Volswagen Tiguan. N94-11226

  • Disconnect the connector -1-.

Volswagen Tiguan. N94-12518

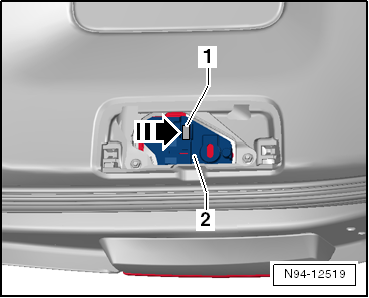

  • Push the retainer -1- in the direction of -arrow- and remove the bulb holder -2-.

Volswagen Tiguan. N94-12519

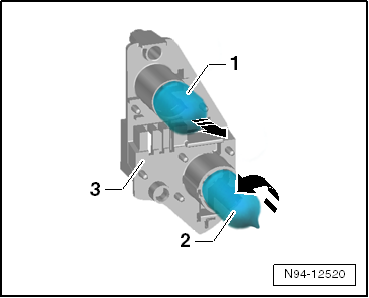

  • Pull the tail lamp bulb -1- in the direction of -arrow- straight out of the bulb socket in the bulb holder -3-.

Volswagen Tiguan. N94-12520

Tail lamp bulb: 12V, 16W

Installing

Install in reverse order of removal. Note the following:

  • After installation, check the tail lamp functions.
