Volkswagen Tiguan Service and Repair Manual: Wiring Harness Repair Set

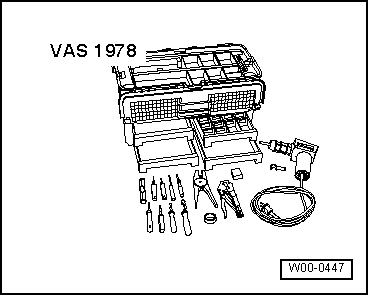

Wiring Harness Repair Set -VAS1978-

The Wiring Harness Repair Set -VAS1978- makes optimal repair quality possible in the realm of vehicle electronics. Using the tools, repairs affecting harness connectors and for breaks in wiring can be performed. For this purpose, complete repair wires with terminals already crimped on are used and can be connected to vehicle-specific wiring harness by the use of crimp connections. A pair of crimping pliers with three different crimp slots and a hot air gun for shrinking the crimp connections provide trouble-free electrical connection.

Volswagen Tiguan. W00-0447

Note

Additional information: Refer to Wiring Harness Repair Set -VAS1978- Operating Instructions.

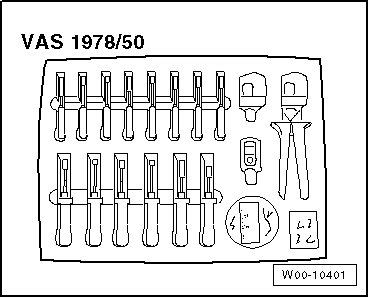

Upgrade Kit For VAS1978 -VAS1978/50-

The Upgrade Kit For VAS1978 -VAS1978/50- is required in order to bring the "old"Wiring Harness Repair Set -VAS1978- up to the new standard of the Wiring Harness Repair Set -VAS1978A-. The upgrade kit contains four assembly- and ten release tools as well as new crimping pliers for crimp connections with Crimping Heads for 0.35 - 2.5 mm 2Wiring Harness Repair - Crimping Head - .35-2.5mm -VAS1978/1-1-, 4.0 - 6.0 mm²Wiring Harness Repair Set - Crimping Head - 4-6mm -VAS1978/2A- and the Wiring Harness Repair Set - Crimping Head - JPT -VAS1978/9-1-. Furthermore it contains new stickers, a new set of user instructions, crimp connections for 0.35 mm2-wire cross sections and a roll of black felt adhesive tape.

Volswagen Tiguan. W00-10401

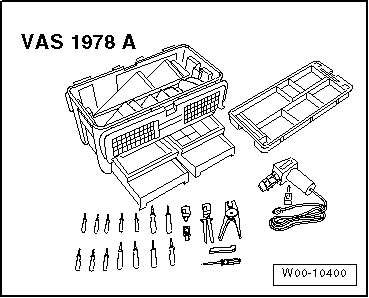

Wiring Harness Repair Set -VAS1978A-

The new Wiring Harness Repair Set -VAS1978A- makes optimal repair quality possible in the realm of vehicle electronics. Using the new pliers, repairs affecting harness connectors and for breaks in wiring can be performed. For this purpose, complete repair wires with terminals already crimped on are used and can be connected to vehicle-specific wiring harness by the use of the four different types of crimp connections. A pair of new crimping pliers with crimping heads and a hot air gun for shrinking the crimp connections provide trouble-free electrical connection.

Volswagen Tiguan. W00-10400

Note

Additional information: Refer to Wiring Harness Repair Set -VAS1978A- Operating Instructions.

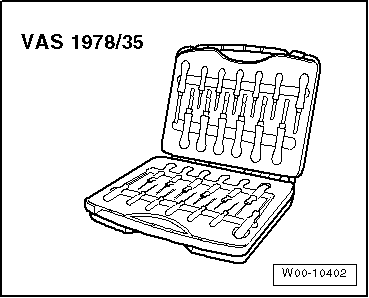

Release Tool Set -VAS1978/35-

The Release Tool Set -VAS1978/35- is used to release the various primary and secondary locking mechanisms on VW-group vehicles. The set consists of 26 different tools which can be used to professionally release or assemble e.g. round connector systems, flat terminals with one or two locks as well as single wire seals.

Volswagen Tiguan. W00-10402

The allocation of the correct release tools to the respective locking mechanisms can be found in the table in the Release Tool Set -VAS1978/35- Operating Instructions.

    Vehicle Electrical System, General Repair Information
    Caution Follow the procedure in the repair manual when disconnecting and connecting the battery. WARNING Some tools are supplied with a tool safety clip, which is slid over the tool points after usi ...

    Tool Descriptions
    Crimping Pliers with Insert The Crimping Pliers without Insert -VAS1978/1- with Crimping Pliers - Insert 2 -VAS1978/2- is a component of the Wiring Harness Repair Set -VAS1978- and is used to crimp ...
