Volkswagen Tiguan Service and Repair Manual: Washer Fluid Line Hose Connections

Windshield and Rear Window Washer System

The following hose connection types are used for connecting hoses to pumps and spray nozzles or as separating points

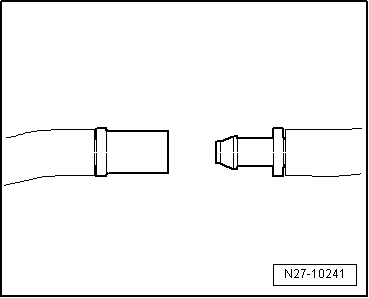

  • To loosen the connection, pulling both halves of the coupling apart.
  • To secure the connection, push both halves of coupling together until felt and heard to engage.

Volswagen Tiguan. N27-10241

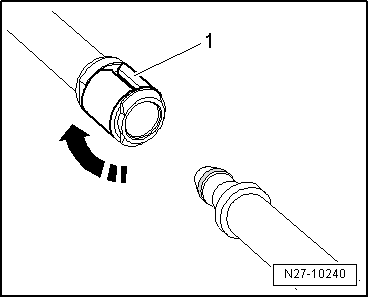

  • To loosen the connection, turn the securing clip -1- 90º -arrow- and then pull the hose connection off.
  • To secure the connection, attach the hose connection and turn the securing clip -1--arrow- until it engages.

Volswagen Tiguan. N27-10240

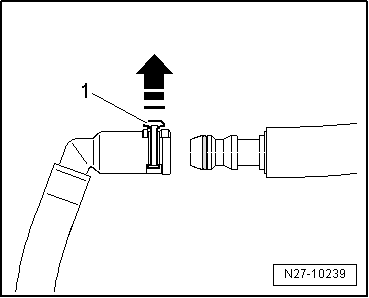

  • To loosen the connection, lift the securing clip -1- approximately 1 mm -arrow- and then remove the hose connection.
  • To secure the connection, attach the hose connection and press in the securing clip -1- until it engages.
  • To secure the connection, attach the hose connection and press in the securing clip -1- until it engages.

Volswagen Tiguan. N27-10239

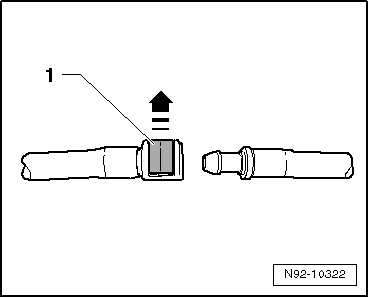

  • To loosen the connection, pull the securing clip upward -1--arrow- and remove the hose connection.
  • To secure the connection, attach the hose connection and press in the securing clip -1- until it engages.

Volswagen Tiguan. N92-10322

Headlamp Washer System

The following hose connection types are used for connecting hoses to pumps and spray nozzles or as separating points

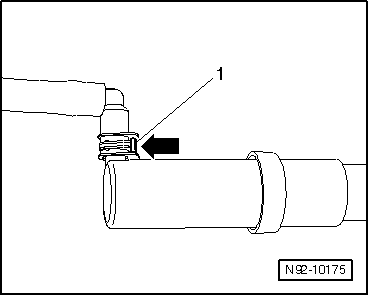

  • Disconnect by depressing clip -1--arrow- and then separating coupling from jet.
  • Reconnect by keeping clip -arrow- depressed while pushing coupling onto jet until it engages. Check securing clip for secure locking by attempting to pull it off without depressing clip.

Volswagen Tiguan. N92-10175

    Windshield Wiper/Washer System
    ...

    Hoses, Repairing
    General Information A new repair concept has been developed for repairing washer system hoses. Various individual hose connectors, adapters, Ethylene Propylene Diene Methylene (EPDM) rubber hoses an ...
