Volkswagen Tiguan Service and Repair Manual: External Audio Source Connection -R199-, Removing and Installing

Volkswagen Tiguan Service and Repair Manual / Communication / External Audio Source Connection -R199-, Removing and Installing

General Information


  • Refer to the Owner's Manual.
  • When the battery is reconnected, check any affected system or component (radio, clock, comfort electrical connection etc.) according to the repair manual and/or the Owner's Manual.

The AUX IN socket is located in the center console.

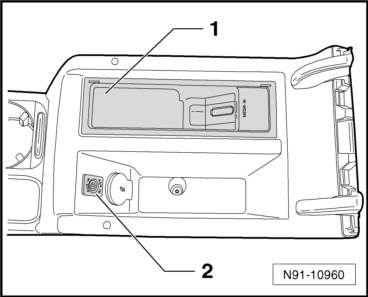

AUX IN Socket, Location -2-

Volswagen Tiguan. N91-10960

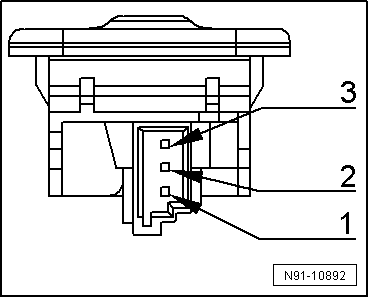

AUX IN Socket, Pin Assignment

  1. Left Audio Signal
  2. Voltage Supply, Terminal 31, Negative
  3. Right Audio Signal

Volswagen Tiguan. N91-10892

AUX IN Socket, Removing and Installing

Special tools and workshop equipment required

  • Trim Removal Wedge -3409-
  • If necessary, remove the CD changer.
  • Remove the rear section of the center console.

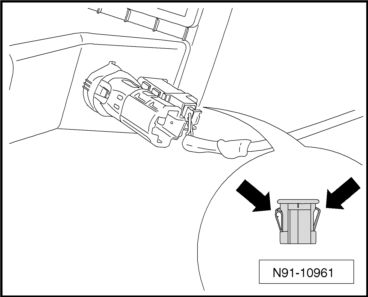

  • Press the clips -arrows- in the AUX IN socket using the Trim Removal Wedge -3409- and slide the AUX IN socket out of its mount.

Volswagen Tiguan. N91-10961

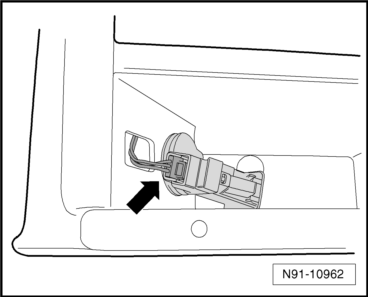

  • Disconnect the connector.

Volswagen Tiguan. N91-10962


Install in reverse order of removal.
