Volkswagen Tiguan Service and Repair Manual: "Premium 7" Radio System

General Information

Premium 7 Radio

Note

  • Familiarity with the function and operation is needed if there are customer concerns. Refer to the Owner's Manual.
  • Anti-theft coding is equipped with protection code number, deactivating electronic anti-theft system.
  • When performing servicing or Fault Finding see Vehicle Diagnostic Tester.
  • After connecting the Battery -A-, check all the vehicle accessories such as the radio, the clock and the convenience electronics.

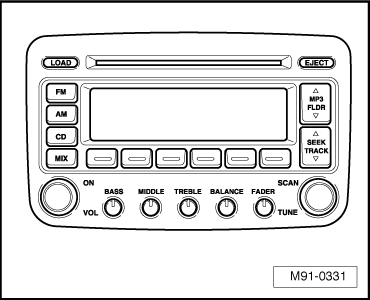

Volswagen Tiguan. M91-0331

  • The "Premium 7" has the following features:
  • Monochrome display
  • 4 speaker channels, each with 20 W
  • Integrated 6-disc CD changer
  • Connection for an external CD Changer -R41-
  • UHV Low
  • Connectable external sound amplifier (Amplifier -R12-)
  • Convenience coding
  • Connection for external Radio System, Satellite -R146-

The CD changer integrated inside the Radio -R- plays the following formats:

  • Audio CD
  • CD-R
  • CD-RW
  • MP3

It is not possible to play the following formats:

  • 8 cm CDs
  • "Mix CDs" (CDs containing files and audio files)

The antenna is located in rear window on sedan models. The antennas on the wagon model are located in the rear side window and the roof antenna. The antenna system includes an integrated diversity function inside the Radio -R-.

Troubleshooting

The "Premium 7" is equipped with OBD.

For troubleshooting, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.

Repairing Antenna Wires

A new repair concept has been developed for repairing antenna wires. Instead of a complete antenna wire, connecting wires of different lengths and various adapter leads are now available as replacement parts.

Repairing antenna wires.

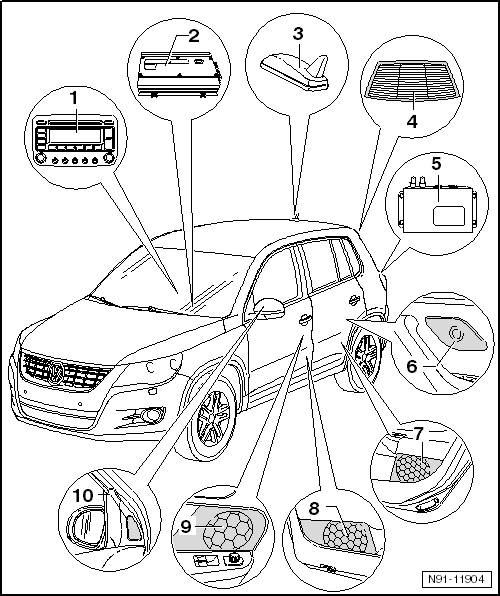

Overview - "Premium 7" Sound System

Volswagen Tiguan. Overview - "Premium 7" Sound System

  1. Radio -R-
    • Connectors.
    • Removing and installing.
  2. Amplifier -R12-
    • Under the left front seat
  3. Satellite Tuner Antenna -R172-
    • In the rear on the roof
  4. Antenna -R11-/Radio Antenna 2 -R93-
  5. Radio System, Satellite -R146-
    • Under the right front seat
  6. Rear Treble Speaker
    • Inside the left and right rear doors
  7. Rear Bass Speaker
    • Inside the left and right rear doors
  8. Front Bass Speaker
    • Inside the left and right front doors
  9. Front Midrange Speaker
    • Inside the left and right front doors
  10. Front Treble Speaker
    • Inside the left and right mirror triangles

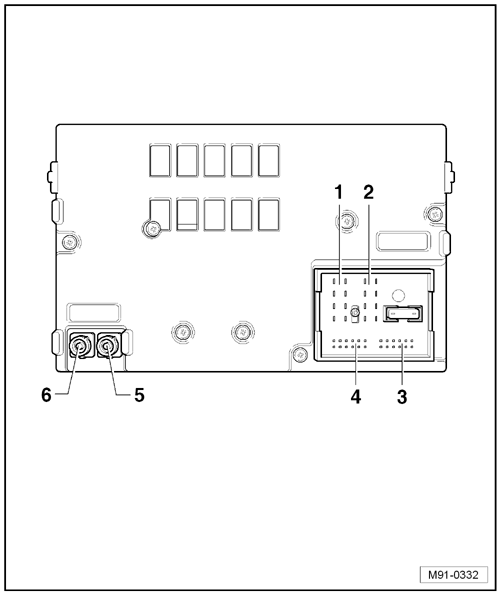

"Premium 7" Connectors

Volswagen Tiguan. "Premium 7" Connectors

  1. 8-Pin Multi-Pin Connector 1, Speaker Outputs
    • Terminal assignment.
  2. 8-Pin Multi-Pin Connector 2, CAN Bus, Voltage Supply
    • Terminal assignment.
  3. 12-Pin Multi-Pin Connector 3, Telephone
    • Terminal assignment.
  4. 12-Pin Multi-Pin Connector 4, Radio System, Satellite -R146-
    • Terminal assignment.
  5. Antenna Connection
    • FM2
  6. Antenna Connection
    • AM/FM

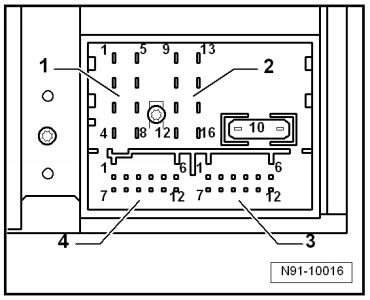

8-Pin Multi-Pin Connector 1, Speaker Outputs

  1. Right Rear Speaker (+)
  2. Right Front Speaker (-)
  3. Left Front Speaker (+)
  4. Left Rear Speaker (+)
  5. Right Rear Speaker (-)
  6. Right Front Speaker (-)
  7. Left Front Speaker (+)
  8. Left Rear Speaker (-)

Volswagen Tiguan. N91-10016

8-Pin Multi-Pin Connector 2, CAN Bus, Voltage Supply

  1. CAN Bus (High)
  2. CAN Bus (Low)
  3. Telephone, Mute
  4. Terminal 31
  5. Radio -R- on
  6. Anti-Theft Alarm System, Terminal 30
  7. Terminal 30
  8. Anti-Theft Alarm System (SAFE), Terminal 30

Volswagen Tiguan. N91-10016

12-Pin Multi-Pin Connector 3, Telephone

6 - Telephone, LF Signal Input (-)

12 - Telephone, LF Signal Input (+)

Volswagen Tiguan. N91-10016

12-Pin Multi-Pin Connector 4, Radio System, Satellite -R146-

  1. Left Audio from Radio System, Satellite -R146-
  2. Not Assigned
  3. Audio Ground from Radio System, Satellite -R146-
  4. Not Assigned
  5. Terminal 30 to Radio System, Satellite -R146-
  6. Not Assigned
  7. Right Audio from Radio System, Satellite -R146-

Volswagen Tiguan. N91-10016

8 through 12 - not used

Electronic Anti-Theft Protection

The Radio -R- is equipped with anti-theft coding, which operates in conjunction with the instrument cluster.

After disconnecting the radio power supply, the Radio -R- is ready for use again once the power supply is connected. The radio code does not need to be entered again. The requirement is that the anti-theft coding must be activated for the first time and that the Radio -R- is reconnected in the same vehicle.

Notes Regarding Function

After first activation of the anti-theft system, an internal radio code is stored in Radio -R- and in instrument cluster. If the Radio -R- voltage is now cut off for repair work, a data exchange is then performed between the Radio -R- and instrument cluster after reconnecting the voltage supply.

During this, the internal radio code of the Radio -R- is compared to the one in the instrument cluster. If the radio code is identical, the instrument cluster recognizes that the Radio -R- connected belongs to that vehicle and the Radio -R- can be used immediately. The radio code does not need to be entered again.

If the Radio -R- is replaced, radio code must be entered.

Deactivate the electronic anti-theft protection.

Then, after the "S-contact" is switched on via the ignition lock, the comparison between instrument cluster and Radio -R- is started automatically.

The Comparison Lasts Approximately 5 Seconds. During This Time, Diagnostic Devices Must Not Be Connected or Disconnected.

When the power supply is disconnected, the Radio -R- is ready for use in this vehicle once the power supply is connected. The radio code does not need to be entered again.

The anti-theft coding is activated and locks the Radio -R- as soon as:

  • The Radio -R- is installed in a different vehicle.
  • the instrument cluster is replaced.

The Radio -R- has been locked by the anti-theft protection. After switching on the Radio -R-"SAFE" and "1000" will appear in the display.

To cancel the lock, deactivate the anti-theft protection.

Electronic Anti-Theft Protection, Deactivating

Reactivating a locked Radio -R- is only possible by entering correct radio code number for anti-theft protection.

Note

  • The radio code for the anti-theft system is attached to the radio card next to the serial number. Refer to the Owner's Manual.
  • For reasons of safety, do not leave the radio card in the vehicle. Get the radio code from the customer.
  • If a Radio -R- is being replaced, then use the radio code of the replacement radio.
  • Inform the customer the radio code has been changed.
  • Get the radio code.
  • Switch on the Radio -R-.

The Radio -R- automatically displays "SAFE" and then "1000".

  • Enter the radio code by using the radio station buttons 1 through 4. Use the first radio station button to enter the first digit of the radio code. Use the second radio station button to enter the second digit.
  • Press the radio station button under the "OK" message in the display and hold it until the anti-theft code is activated. This is indicated by a short signal sound.

If the radio code has been entered correctly into Radio -R-, a radio frequency appears on the display.

If the radio code has been entered incorrectly, it can be corrected immediately in another attempt. If radio code is entered incorrectly twice, then the Radio -R- will lock up for one hour. The Radio -R- can then be switched on and insert the key in ignition lock. After one hour, then the procedure for deactivating the anti-theft system can be repeated. Remember: Always two attempts, after that the Radio -R- will be locked for one hour.

"Premium 7" Components, Adapting

Perform the Following:

  • Connect the Vehicle Diagnostic Tester.
  • Select the Guided Fault Finding mode.
  • Use the GO TO button to select the "function/component selection" and the following menu options one after the other:
  • Body
  • Electrical Equipment
  • 01-OBD-capable system
  • Corresponding radio system
  • Radio system functions
    RCD 510 Radio System
