Volkswagen Tiguan Service and Repair Manual: Tire Pressure Sensor

Overview - Tire Pressure Monitoring Sensor

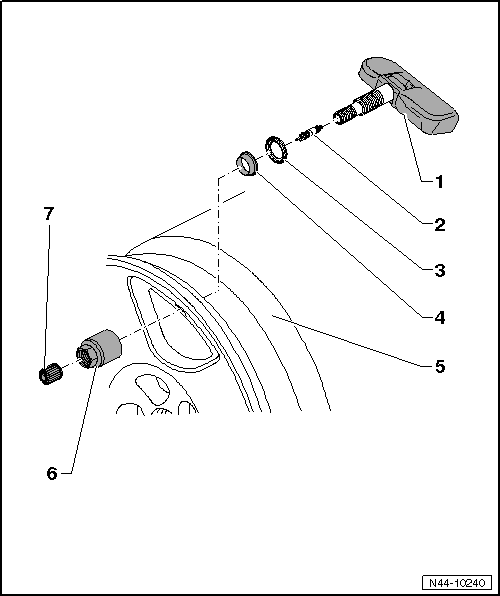

Overview - Tire Pressure Monitoring Sensor with Valve

Volswagen Tiguan. Overview - Tire Pressure Monitoring Sensor

  1. Tire Pressure Monitoring Sensor
    • Supplied complete as a service part
    • Removing and Installing.
    • When battery is discharge, the entire Tire Pressure Monitoring Sensor must be replaced
    • After using a wheel repair kit, the bore for the valve and opening of the pressure sensor must be wiped clean.
  2. Valve Insert
    • Allocation. Refer to the Parts Catalog.
    • Replace at every tire change

Note

Use only original manufacturer valve insert, it has a special coating!

  1. Sealing Washer
    • is slightly deformed when tightening the union nut -item 6-
  2. Seal
  3. Disc Wheel
    • Mounting tires with emergency running characteristics.
    • Mounting tires (wheels with tire pressure monitoring system).
  4. Union Nut
    • 8 Nm
  5. Valve Cap
    • Use only original valve caps from the repair set. Refer to the Parts Catalog.
    • Do not use Comfort valve caps and metal caps

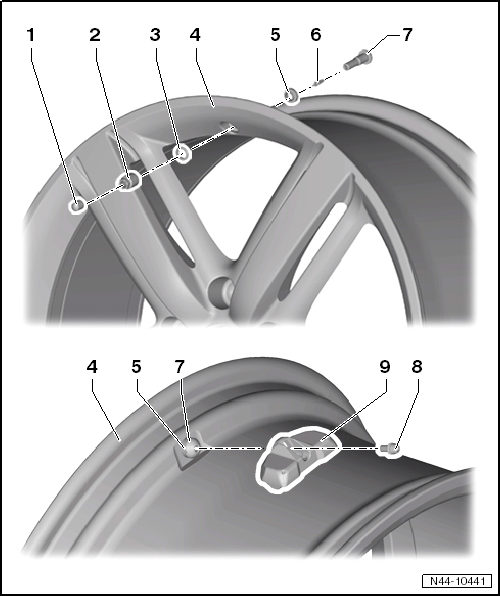

Overview - Tire Pressure Monitoring Sensor without Valve

Volswagen Tiguan. Overview - Tire Pressure Monitoring Sensor without Valve

  1. Valve Cap
  2. Nut
    • Individual component of -item 7-
    • Tightening specification.
    • Always replace if removed
  3. Washer
    • Individual component of -item 7-
  4. Disc Wheel
    • Tire mounting.
  5. Seal
    • Individual component of -item 7-
  6. Valve Insert
    • Replace at every tire change

Note

Never use brass valve inserts (corrosion!) Only use nickel valve inserts (silver).

  1. Metal Valve
    • Supplied as a replacement part complete with bolt -item 8-
    • Removing and Installing.
  2. Bolt
    • Torx bolt (service version)
    • Individual component of -item 7-
    • 4 Nm
    • Square screw with a flat head (vehicle before customer delivery)
  3. Tire Pressure Monitoring Sensor
    • Left Front Tire Pressure Monitoring Sensor -G222-
    • Right Front Tire Pressure Monitoring Sensor -G223-
    • Left Rear Tire Pressure Monitoring Sensor -G224-
    • Right Rear Tire Pressure Monitoring Sensor -G225-
    • Removing and Installing on vehicles after customer delivery.
    • Removing and Installing on vehicles before customer delivery.

Note

The tire pressure monitoring sensors expire after approximately 10 years.

Union Nut Tightening Specification

Model, type System Country Nm
All VW Vehicles Direct measurement all countries 4 Nm
Audi A1, 8X TPMS + indirect measuring → Note USA and rest of the world ------
Audi A3, 8P direct measuring, Siemens → Note USA 8 Nm
Audi A3, 8P TPMS + indirect measuring → Note Rest of the world ------
Audi A4, 8E direct measuring, Beru → Note USA and rest of the world 4 Nm
Audi A4, 8K direct measuring, Siemens → Note USA 8 Nm
Audi A4, 8K TPMS + indirect measuring → Note Rest of the world ------
Audi A5, 8T direct measuring, Siemens → Note USA 8 Nm
Audi A5, 8T TPMS + indirect measuring → Note Rest of the world ------
Audi S5, 8T direct measuring, Siemens → Note USA 8 Nm
Audi S5, 8T TPMS + indirect measuring → Note Rest of the world ------
Audi A5, S5 Cabrio 8F direct measuring, Siemens → Note USA 8 Nm
Audi A5, S5 Cabrio 8F TPMS + indirect measuring → Note Rest of the world ------
Audi A6, 4B direct measuring, Beru → Note USA and rest of the world 4 Nm
Audi A6, 4F direct measuring, Beru → Note USA and rest of the world 4 Nm
Audi RS-6, 4F direct measuring, Beru → Note USA and rest of the world 6 Nm
Audi A6, 4G TPMS + indirect measuring → Note USA and rest of the world ------
Audi A7, 4G TPMS + indirect measuring → Note USA and rest of the world ------
Audi A8, 4E direct measuring, Beru → Note USA and rest of the world 4 Nm
Audi A8, 4H TPMS + indirect measuring → Note USA and rest of the world ------
Audi Q5, 8R direct measuring, Siemens → Note USA 8 Nm
Q7, 4L direct measuring, Beru → Note USA and rest of the world 4 Nm
Audi Q7, 4L-12-Cylinder direct measuring, Beru → Note USA and rest of the world 4 Nm
Audi TT, 8J direct measuring, Siemens → Note USA 8 Nm
Audi TT, 8J TPMS + indirect measuring → Note Rest of the world ------
Audi R8, 42 direct measuring, Beru → Note USA and rest of the world 6 Nm

Tire Pressure Monitoring Sensor, Removing and Installing

Tire Pressure Monitoring Sensor with Valve, Removing and Installing

Removing

  • Remove the union nut -1-.
  • Remove Tire Pressure Monitoring Sensor-2- from rim well.

Volswagen Tiguan. Tire Pressure Monitoring Sensor, Removing and Installing

Installing

Caution

Clean the valve opening before installing the Tire Pressure Monitoring Sensor.

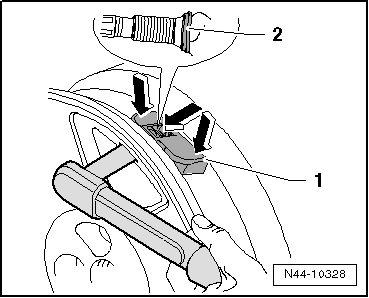

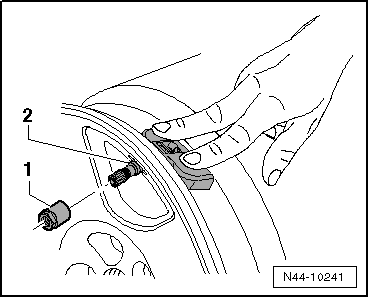

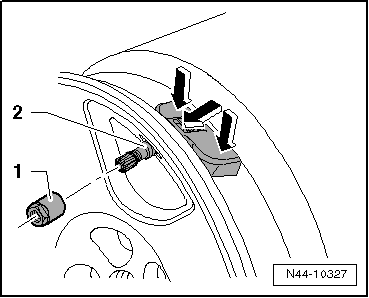

  • Insert the Tire Pressure Monitoring Sensor-2- with new seal and sealing washer and press it on the spots marked with the -arrows- into the disc wheel (rim).
  • Press the Tire Pressure Monitoring Sensor-2- on the spots marked with the -arrows- into the disc wheel (rim).

Volswagen Tiguan. N44-10327

Screw on union nut -1- from outside onto tire pressure sensor.

  • Press the Tire Pressure Monitoring Sensor-1- on the spots marked with the -arrows- into the rim and tighten the union nut to 8 Nm.

Caution

  • Only tighten the union nut to the tightening specification.
  • Sealing washer -2- becomes slightly deformed when doing this.
  • The sealing washer can be installed one time only. At every installation, replace the sealing washer and rubber seal.
  • Do not tighten the union nut again. This will damage the seal and it will leak.

Volswagen Tiguan. N44-10328

Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version

Special tools and workshop equipment required

  • Torque Wrench -VAG1410-

Perform the Following:

Removing

  • Remove the tire from the disc wheel.

See Which Version is Installed Before Starting Any Work.

I - Service Version

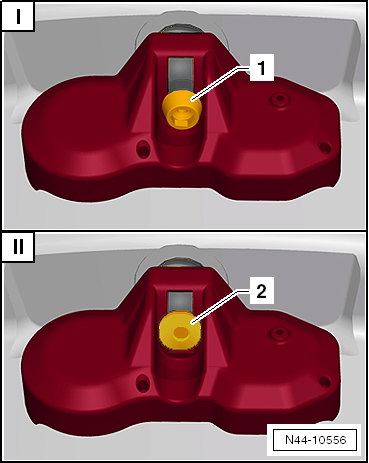

The tire pressure monitoring sensor is attached to the valve with an inner TORX screw -1- on the Service version.

If the service version is installed, the following repair procedure must be used.

Volswagen Tiguan. N44-10556

II - Vehicles Before Customer Delivery

The tire pressure monitoring sensor is attached to the valve with a square screw with a flat head -2- on vehicles before customer delivery.

If the production version is installed, the following repair procedure must be used.

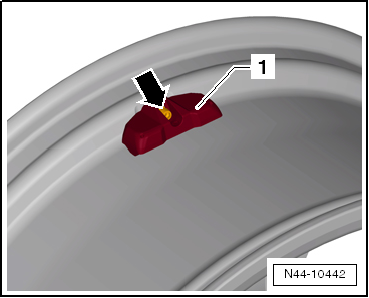

  • Remove the screw -arrow- from the tire pressure monitoring sensor -1-.
  • Counterhold metal valve using retainer (for example 2 mm spiral bore) while doing so.

Volswagen Tiguan. N44-10442

Installing

Caution

Clean the valve opening before installing the Tire Pressure Monitoring Sensor.

  • Press the tire pressure monitoring sensor -1- onto the disc wheel (rim) and tighten -arrow-.
  • Counterhold metal valve using retainer (for example 2 mm spiral bore) while doing so.

Volswagen Tiguan. N44-10442

Note

  • Visually check the valve after installing it and make sure it is tight. The tire pressure monitoring sensor -1- must not have any play when it is installed and it must touch the supports in the rim bed.
  • Do not tighten the valve again to the tightening specification after it has been installed.

Tire Pressure Monitoring Sensor without Valve, Removing and Installing, Vehicle Before Customer Delivery

Special tools and workshop equipment required

  • Torque Wrench -VAG1410-

Perform the Following:

Removing

  • Remove the tire from the disc wheel.

See which version is installed before starting any work.

I - Service Version

The tire pressure monitoring sensor is attached to the valve with an inner TORX screw -1- on the Service version.

If the service version is installed, the following repair procedure must be used.

Volswagen Tiguan. N44-10556

II - Vehicles Before Customer Delivery

The tire pressure monitoring sensor is attached to the valve with a square screw with a flat head -2- on vehicles before customer delivery.

If the production version is installed, the following repair procedure must be used.

  • Turn the nut -1- counter-clockwise until it is possible to remove the tire pressure sensor -2-.

Note

  • The whole valve turns when the nut it turned -1-.
  • Both the tire pressure monitoring sensor and the metal valve must be replaced together. Refer to the Parts Catalog.
  • Remove the metal valve.

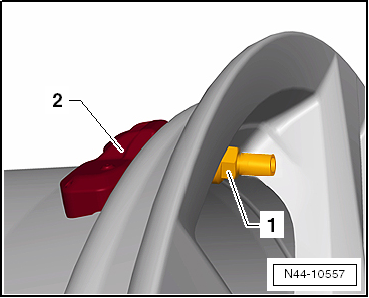

Volswagen Tiguan. N44-10557

Installing

Note

  • Both the tire pressure monitoring sensor and the metal valve must be replaced together. Refer to the Parts Catalog.
  • The new metal valve is available with a new screw as a replacement set.
  • Install the metal valve.

Caution

Clean the valve opening before installing the Tire Pressure Monitoring Sensor.

  • Press the tire pressure monitoring sensor -1- onto the disk wheel (rim) and tighten the new screw -arrow-.
  • Counterhold metal valve using retainer (for example 2 mm spiral bore) while doing so.

Volswagen Tiguan. N44-10442

Note

  • Visually check the valve after installing it and make sure it is tight. The tire pressure monitoring sensor -1- must not have any play when it is installed and it must touch the supports in the rim bed.
  • Do not tighten the valve again to the tightening specification after it has been installed.

Tire Pressure Sensor and Metal Valve, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1410 -VAG1410- and Torque Wrench 1331 5-50Nm -VAG1331-
  • Place metal valve with rubber seal through rim from inside.
  • Attach chamfered washer and union nut from outside and tighten by hand.
  • Tighten the union nut.

Note

  • If equipped handle the glued-on wheel trim carefully. Surface slightly scratched.
  • Replace the damaged rim wheel trim.

1) TPMS direct measuring. The wheel electronics are installed inside the wheel on the metal valve; the tire pressure and temperature values are transmitted and evaluated periodically.

2) TPMS + indirect measuring. There are no wheel electronics installed inside the wheel. With the help of the ABS sensors, the TPMS compares the speed and rolling circumference of the individuals wheels. The loss of pressure is determined indirectly. If there is a change in the tire pressure, then the speed and the rolling circumference of wheel will also change.

3) TPMS indirect measuring. There are no wheel electronics installed inside the wheel. With the help of the ABS sensors, the TPMS compares the rolling circumference of the individual wheels. The loss of pressure is determined indirectly. If there is a change in the tire pressure, then the speed of the tire will also change.

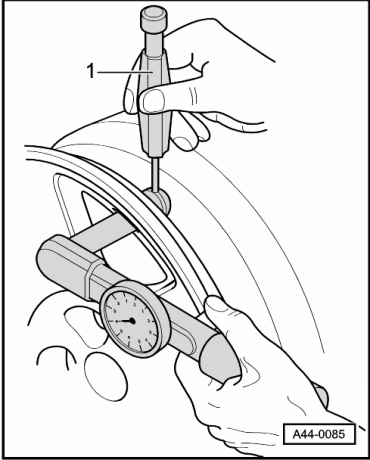

  • Secure against turning with counterhold -1- (for example, a 2 mm drill bit).

Volswagen Tiguan. A44-0085

Not

  • If equipped handle the glued-on wheel trim carefully. Surface slightly scratched.
  • Replace the damaged rim wheel trim.

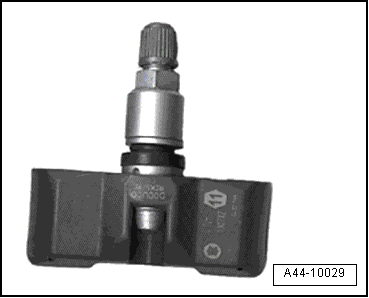

Beru Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

Overview, Beru System

WARNING

If tire sealant was used, then the wheel electronics on that particular wheel must be replaced.

WARNING

Damaged wheel electronics must be replaced.

Volswagen Tiguan. A44-10029

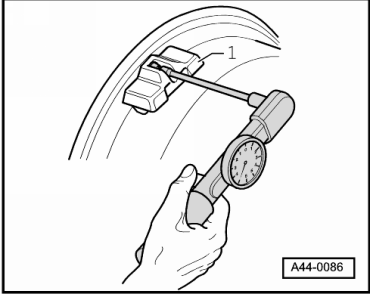

  • Push the wheel electronics -1- into the bed.
  • Install on the valve from the back with a microencapsulated screw -item 8-

Volswagen Tiguan. A44-0086

Note

  • Replace the microencapsulated screw.
  • Tighten the microencapsulated screw to 4 Nm on all models.

Special tools and workshop equipment required

  • Torque Wrench 1410 -VAG1410- and Torque Wrench 1410 Insert - Accessory Kit -VAG1410/1-

Siemens Wheel Electronics Tire Pressure Monitoring Sensor, Removing and Installing

WARNING

If tire sealant was used, then the wheel electronics on that particular wheel must be replaced.

  • The Siemens wheel electronics does not have a microencapsulated screw.
  • A union nut holds the wheel electronics in place inside the rim -item 2-
  • The metal valve body serves as an antenna.
  • The connection between the metal valve body to the wheel electronics must not get damaged.

WARNING

Counterhold the metal valve from the back by hand when pressing the wheel electronics into the bed on the rim. The connection between the metal valve to the wheel electronics must not get interrupted or damaged. Damaged wheel electronics must be replaced.

  • Press the wheel electronics into the bed.
  • Tighten the wheel electronics to the metal valve with the union nut.
    Rim Information
    Overview - Rim Rim Flange Stop for the side tire bead Hump (H2) on Both Bead Seats Prevents the tire from slipping off the bead seat when driving around tight curves An extended hump ...

    Tire Sealant
    Tire Sealant, Expiration Date Tire sealant in the bottle has a limited storage life. Therefore, the expiration date is indicated on the bottle -arrow-. Replace tire sealant when minimum shelf life dat ...
