Volkswagen Tiguan Service and Repair Manual: Component Overview

Overview - Wheel

Overview - Wheel, Standard

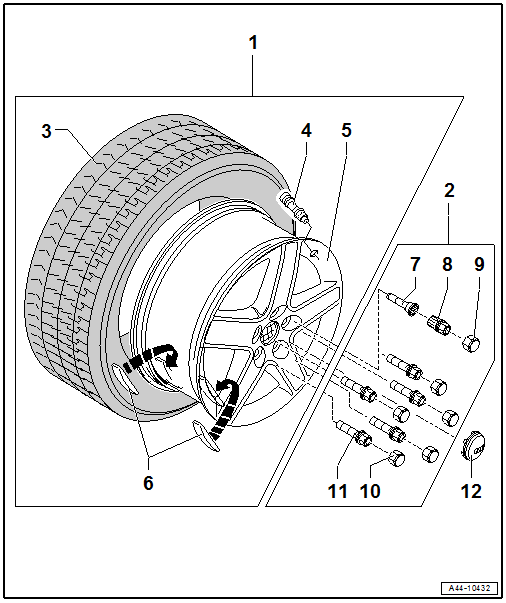

Volswagen Tiguan. Overview - Wheel, Standard

  1. Wheel
    • Installing the wheel.
  2. Wheel Bolts
    • There are different versions.
  3. Tires
    • Refer to → Chapter "Tire Information"
  4. Valve/Tire Pressure Monitoring Sensor
    • Always replace the valve
    • Only use a new valve. Refer to the Parts Catalog.
    • Refer to → Chapter "Tire Pressure Sensor"
  5. Rim
    • Note assembly instructions.
    • Refer to → Chapter "Rim Information"
    • Refer to → Chapter "Overview - Rim"
  6. Adhesive Balancing Weights
    • Maximum 60 grams per rim flange permitted
    • Clean wheel where it will be adhered so it is free of dirt and grease
    • Remove protective film.
    • Attach balance weights to intended surfaces.
  7. Anti-Theft Wheel Bolts
    • Note assembly instructions.
    • Operating.
  8. Adapter for the Anti-Theft Lockable Wheel Bolt
    • Place on wheel bolt.
  9. Anti-Theft Wheel Bolt Cap
  10. Wheel Bolt Cap
  11. Wheel Bolts
    • Tightening specification.

Note

Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.

  • Note assembly instructions.
  1. Hub Cap
    • Removing and Installing.

Overview - Wheel, RAX

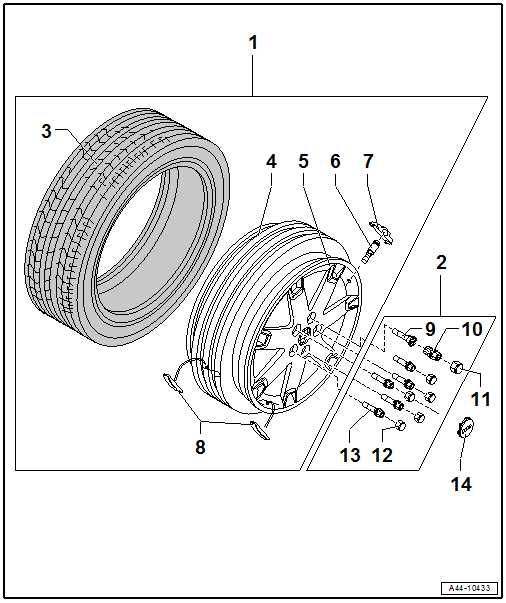

Volswagen Tiguan. Overview - Wheel, RAX

  1. Wheel
    • Installing the wheel.
  2. Wheel Bolts
    • There are different versions.
  3. PAX Tires
    • Side Wall Lettering.
  4. Support Ring
  5. Wheel for PAX Tires
    • Note assembly instructions.
  6. Metal Valve Body
    • Refer to the Parts Catalog for the allocation of the only valves to be installed.
    • delivered complete
  7. Wheel Electronics
    • Batteries must be completely replaced.
    • Remaining battery life, temperature and pressure can be read via diagnosis with Vehicle Diagnostic Tester.

Beru wheel electronics system.

Siemens wheel electronics system.

  1. Adhesive Balancing Weights
    • Maximum 60 grams per rim permitted
    • Clean wheel where it will be adhered so it is free of dirt and grease
    • Remove protective film.
    • Attach balance weights to intended surfaces.
  2. Anti-Theft Wheel Bolts
    • Note assembly instructions.
    • Operating.
  3. Adapter for the Anti-Theft Lockable Wheel Bolt
    • Place on wheel bolt.
  4. Anti-Theft Wheel Bolt Cap
  5. Wheel Bolt Cap
  6. Wheel Bolts

Note

Make sure the correct wheel bolts are installed. Refer to the Parts Catalog.

  • Note assembly instructions
  1. Hub Cap
    • Removing and Installing.
    Tire Wear
    Tire Service Life, Influences The following factors influence the service life of a tire in varying degrees. Driving style: Speed Brakes Acceleration Cornering Service; Tire Pressure Area: ...

    Tires, Mounting
    ...
