Volkswagen Tiguan Service and Repair Manual: Wheel Allocation

6 1/2 J x 16

Note

Always adhere to the wheel/tire allocations for the corresponding engine which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to → Wheel and Tire Guide General Information;
Tightening specifications for wheel bolts: Refer to → Suspension, Wheels and Steering;
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

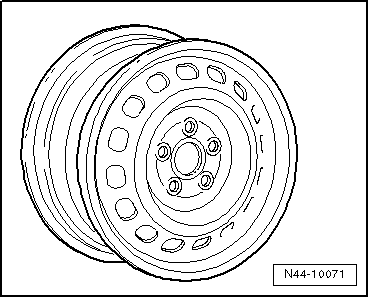

5N0 601 027 B - Steel Rim

Volswagen Tiguan. N44-10071

Dimension: 6 1/2 J x 16
Offset (mm): 33
Wheel load in kg: 625

7N0 601 027 A, 7N0 601 027 B - Steel Rim

Volswagen Tiguan. N44-10071

Dimension: 6 1/2 J x 16
Offset (mm): 33
Wheel load in kg: 675

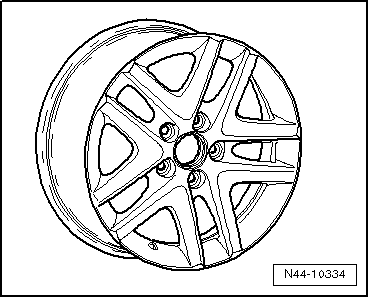

5N0 601 025 - Aluminum Rim "SAN FRANCISCO"

Volswagen Tiguan. N44-10334

Dimension: 6 1/2 J x 16
Offset (mm): 33
Wheel load in kg: 625

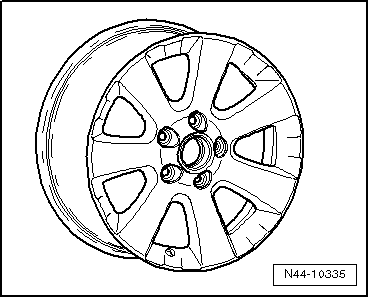

5N0 601 025 A - Aluminum Rim "SAN DIEGO"

Volswagen Tiguan. N44-10335

Dimension: 6 1/2 J x 16
Offset (mm): 33
Wheel load in kg: 625

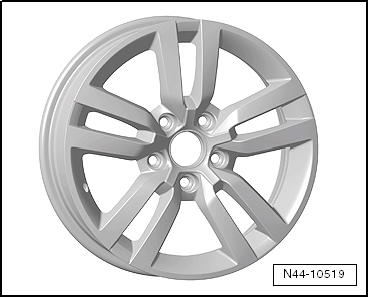

5N0 601 025 R - Aluminum Rim "PORTLAND"

Volswagen Tiguan. N44-10519

Dimension: 6 1/2 J x 16
Offset (mm): 33
Wheel load in kg: 625

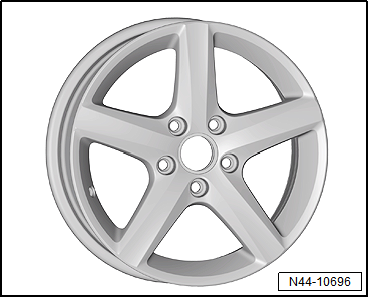

5N0 601 025 AQ - Aluminum Rim "ASPEN"

Volswagen Tiguan. N44-10696

Dimension: 6 1/2 J x 16
Offset (mm): 33
Wheel load in kg: 740

61/2 J x 17

Note

Always adhere to the wheel/tire allocations for the corresponding engine which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to → Wheel and Tire Guide General Information;
Tightening specifications for wheel bolts: Refer to → Suspension, Wheels and Steering;
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

5N0 601 025 L, 5N0 601 025 AG - "BOSTON" Aluminum Rims

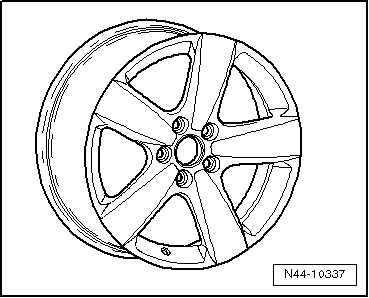

Volswagen Tiguan. N44-10337

Dimension: 61/2 J x 17
Offset (mm): 33
Wheel load in kg: 625

5N0 601 025 AM - "PHILADELPHIA" Aluminum Rims

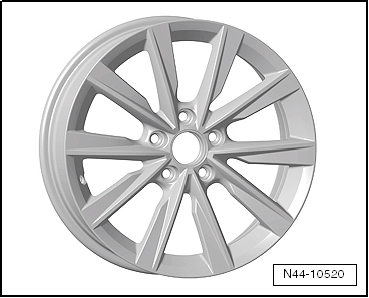

Volswagen Tiguan. N44-10520

Dimension: 61/2 J x 17
Offset (mm): 33
Wheel load in kg: 615

7 J x 17

Note

Always adhere to the wheel/tire allocations for the corresponding engine which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to → Wheel and Tire Guide General Information;
Tightening specifications for wheel bolts: Refer to → Suspension, Wheels and Steering;
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

5N0 601 025 C, 5N0 601 025 AE - Aluminum Rim "BOSTON"

Volswagen Tiguan. N44-10337

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 625

5N0 601 025 AC - Aluminum Rim "SPOKANE"

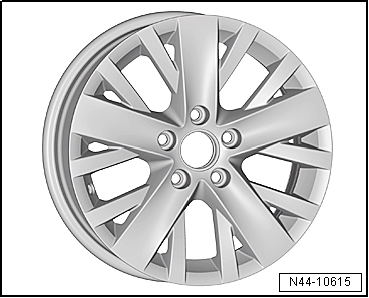

Volswagen Tiguan. N44-10615

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 615

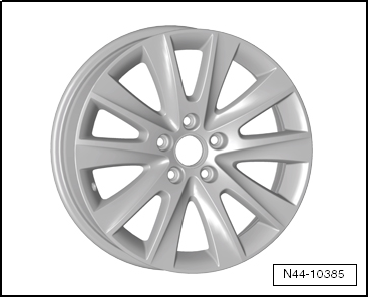

5N0 601 025 M - Aluminum Rim "LOS ANGELES"

Volswagen Tiguan. N44-10385

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 625

5N0 601 025 P, 5N0 601 025 AH - "NEW ORLEANS" Aluminum Rims

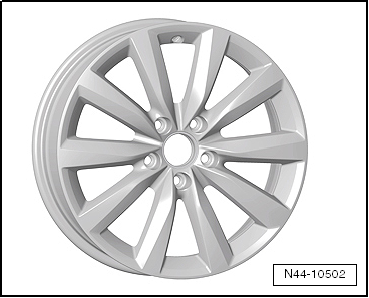

Volswagen Tiguan. N44-10502

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 620

5N0 601 025 S - Aluminum Rim "PHILADELPHIA"

Volswagen Tiguan. N44-10520

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 620

5N0 601 025 AJ - Aluminum Rim "PHILADELPHIA"

Volswagen Tiguan. N44-10520

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 615

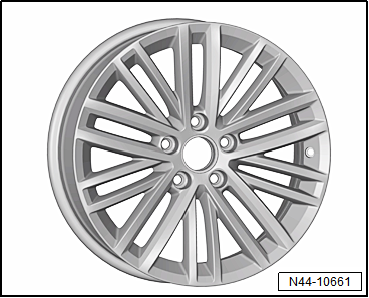

5N0 601 025 AL - "FORTALEZA" Aluminum Rims

Volswagen Tiguan. N44-10661

Dimension: 7 J x 17
Offset (mm): 43
Wheel load in kg: 615

7 J x 18

Note

Always adhere to the wheel/tire allocations for the corresponding engine which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to → Wheel and Tire Guide General Information;
Tightening specifications for wheel bolts: Refer to → Suspension, Wheels and Steering;
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

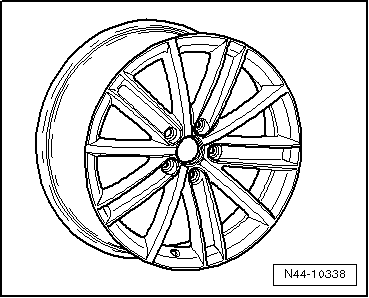

5N0 601 025 D, 5N0 601 025 AF - Aluminum Rim "NEW YORK"

Volswagen Tiguan. N44-10338

Dimension: 7 J x 18
Offset (mm): 43
Wheel load in kg: 625

5N0 601 025 Q - Aluminum Rim "PASADENA"

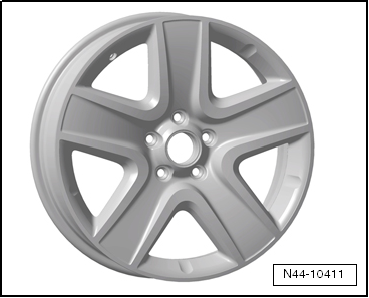

Volswagen Tiguan. N44-10411

Dimension: 7 J x 18
Offset (mm): 43
Wheel load in kg: 650

8 x 18

Note

Always adhere to the wheel/tire allocations for the corresponding engine which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to → Wheel and Tire Guide General Information;
Tightening specifications for wheel bolts: Refer to → Suspension, Wheels and Steering;
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

5N0 601 025 AA, 5N0 601 025 AK - Aluminum Rim "MALLORY"

Only for Vehicles with Sport Chassis and Wheel Housing Extension

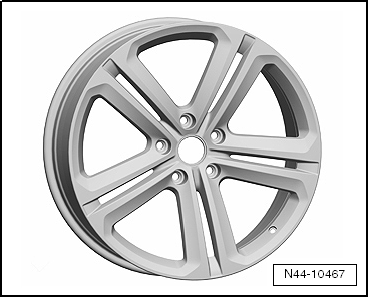

Volswagen Tiguan. N44-10467

Dimension: 8 J x 18
Offset (mm): 30
Wheel load in kg: 650

9 J x 19

Note

Always adhere to the wheel/tire allocations for the corresponding engine which are listed in the overview table.

Explanatory notes of indications on disc wheels: Refer to → Wheel and Tire Guide General Information;
Tightening specifications for wheel bolts: Refer to → Suspension, Wheels and Steering;
Pitch circle diameter: 112 mm
Number of wheel bolt holes: 5

5N0 601 025 G - Aluminum Rim "SAVANNAH"

Only for Vehicles with Sport Suspension VI and Wheel Housing Extensions or with ABE 46696

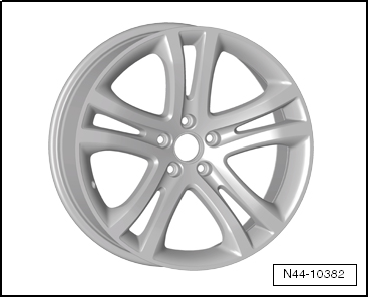

Volswagen Tiguan. N44-10382

Dimension: 9 J x 19
Offset (mm): 33
Wheel load in kg: 650

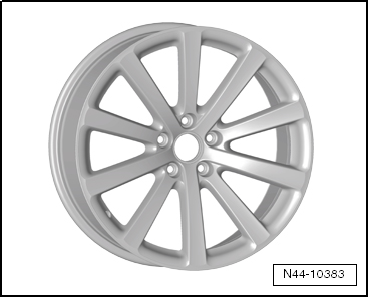

5N0 601 025 K - Aluminum Rim "OMANYT"

Only for Vehicles with Sport Suspension VI and Wheel Housing Extensions

Volswagen Tiguan. N44-10383

Dimension: 9 J x 19
Offset (mm): 33
Wheel load in kg: 650

5N0 601 025 T - Aluminum Rim "MALLORY"

Only for Vehicles with Sport Suspension VI and Wheel Housing Extensions

Volswagen Tiguan. N44-10467

Dimension: 9 J x 19
Offset (mm): 33
Wheel load in kg: 650

Recommended All Season Tires

Information about the Recommended Tires.

Refer to → Chapter "Explanations about Regions"

Tire Size Manufacturer Tread Designation Comments
215/65 R 16 98H Michelin Latitude THP
  Pirelli Scorpion
  Continental 4x4 Contact
  Goodyear Eagle LS2
235/55 R 17 99H Michelin Latitude THP
  Continental Pro Contact

Recommended Spare Tires and Emergency Wheels

If Necessary, Explain the following Specified Information to the Customer and Also Refer Them to the Vehicle Owner's Manual.

The notes listed in the following also apply to spare wheels, for example 6.5 J x 16 with 215/65 R 16 tires, which are marked with the lettering "MAX 80 km/h" or "MAX 50 mph" on a yellow sticker.

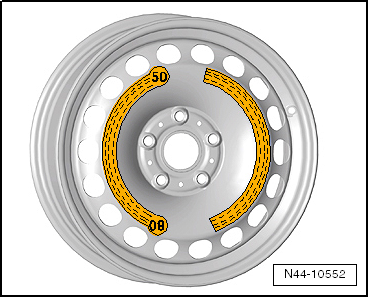

Volswagen Tiguan. N44-10552

Note

  • The vehicle may have a spare tire with the above mentioned sticker in place of an emergency tire, depending on the vehicle equipment.
  • The emergency/spare tire is designed only for sporadic and short-term use. Therefore it is to be replaced with a normal tire as soon as possible.
  • After mounting the spare tire, the tire pressure must be checked as quickly as possible.
  • The tire pressures are listed on the tire pressure label on the inside of the fuel filler door and on the driver side B-pillar.
  • Always pay attention to the speed rating on the spare tire ("MAX 80 km/h" or "MAX 50 mph").
  • Wide Open Throttle (WOT) acceleration, hard braking and driving rapidly around curves should be prevented.
  • Never drive with more than one spare tire.
  • For technical reasons, it is not permitted to use snow chains on the spare tire.
  • If the vehicle must be driven with snow chains, the spare tire must be installed on the rear axle when there is a faulty front wheel. The dismounted rear wheel must then be mounted in place of the faulty front wheel.

Refer to the Parts Catalog for replacement part number.

Disc Wheel Tires
Dimension Dimension Manufacturer Tread
4 J x 18 ET 27.5 T145/80 R 18 99M Continental CST 17

Edition: K0059111921- RF - 04/15/2015 - ESP
