Volkswagen Tiguan Service and Repair Manual: Electro-Mechanical Steering Gear

Overview - Electro-Mechanical Steering Gear

Caution

If the universal joint is separated from the steering gear, the following work cannot be performed:

  • Connect the battery.
  • Switching on the ignition
  • Turning the steering gear
  • Turning the steering column.

These points must be observed since performing these actions could cause irreparable damage.

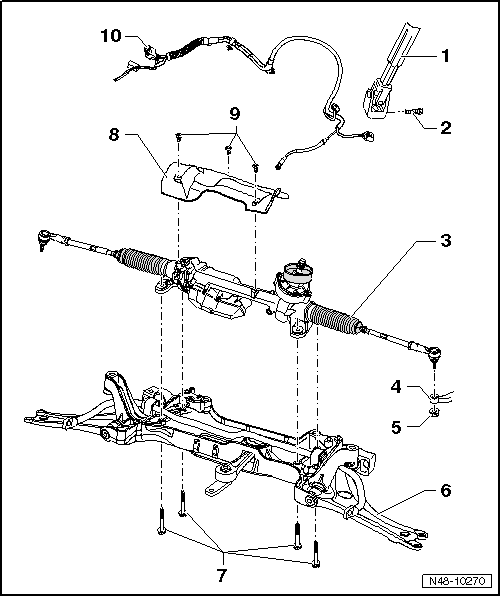

Volswagen Tiguan. Overview - Electro-Mechanical Steering Gear

  1. Universal Joint
  2. Bolt
    • 30 Nm
    • Always replace if removed
    • M8 x 35
  3. Power Steering Gear
    • With Power Steering Control Module -J500-
    • With Electromechanical Power Steering Motor -V187-
    • With Engine Speed Sensor -G28-
    • With Steering Torque Sensor -G269-
    • Can be checked in Guided Fault Finding using the Vehicle Diagnostic Tester.
    • Removing and installing.

Note

Correct any faults stored in the DTC memory before replacing the steering gear using the Vehicle Diagnostic Tester.

  1. Wheel Bearing Housing
  2. Nut
    • 50 Nm
    • Always replace if removed
    • M12 x 1.5
    • Self-locking
  3. Subframe
  4. Bolt
    • 50 Nm + 90º
    • Always replace if removed
    • M10 x 70
  5. Heat Shield
  6. TORX Bolt
    • 6 Nm
    • Self-tapping
  7. Wire

Steering Gear, Removing and Installing

Special tools and workshop equipment required

  • Torque Wrench 1331 5-50Nm -VAG1331-
  • Torque Wrench 1332 40-200Nm -VAG1332-
  • Engine and Gearbox Jack -VAS6931-
  • Puller - Ball Joint -3287A-

Removing

Note

Correct any faults stored in the DTC memory before replacing the steering gear using the Vehicle Diagnostic Tester.

  • Connect the Vehicle Diagnostic Tester and start "Guided Fault Finding".

Follow the instructions on the screen.

  • Turn the steering wheel in the straight position and remove the ignition key so that the steering wheel lock engages.

Vehicles with "Keyless Access" Keyless Locking and Starting System

Switch the ignition off and open the driver door so the steering wheel lock engages.

Continuation for All Vehicles

  • Disconnect the battery.

Volswagen Tiguan. N48-10276

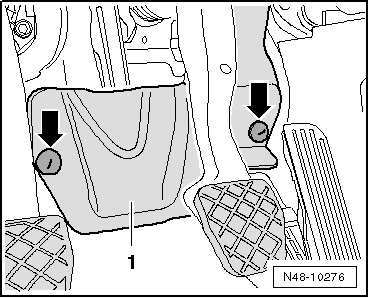

  • Remove foot well trim -1-, unscrew nuts -arrows- to do so.

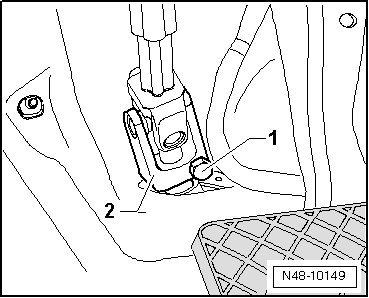

  • Remove the bolt -1- and remove the universal joint -2- from the steering gear.

Caution

If the universal joint is separated from the steering gear, the following work cannot be performed:

  • Connect the battery.
  • Switching on the ignition
  • Turning the steering gear
  • Turning the steering column.

Volswagen Tiguan. N48-10149

These points must be observed since performing these actions could cause irreparable damage.

  • Remove the front wheels.
  • Loosen the nut of the tie rod end, but do not remove yet.

Caution

To protect the thread, screw the nut on the pin a few turns.

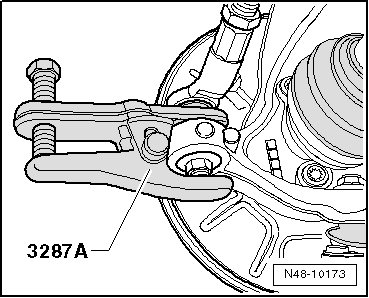

  • Press off tie rod end from wheel bearing housing with Puller - Ball Joint -3287A- and then remove nut.
  • Remove the lower noise insulation.
  • Remove coupling rods from stabilizer.

Volswagen Tiguan. N48-10173

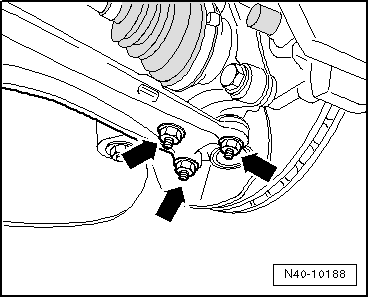

  • Remove the nuts -arrows-.

Volswagen Tiguan. N40-10188

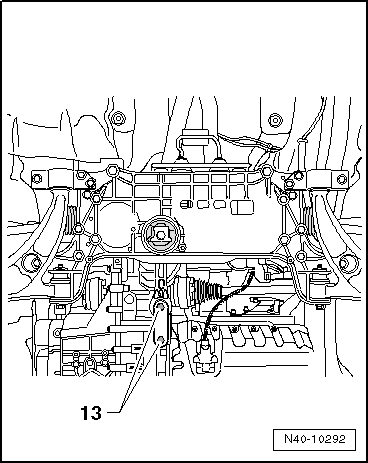

  • Remove the bolts -13- and then remove the pendulum support from the transmission.

Volswagen Tiguan. N40-10292

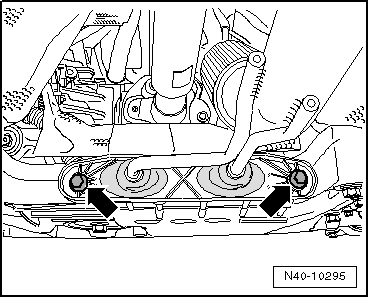

  • Remove exhaust system bracket from the subframe-arrows-.

Volswagen Tiguan. N40-10295

FWD vehicles

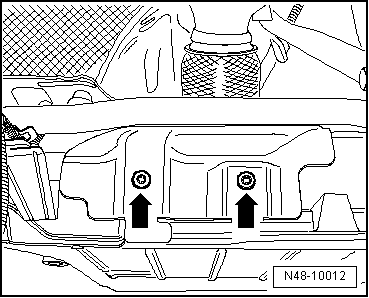

  • Remove bolts -arrows- from heat shield.
  • Remove heat shield from subframe.

Volswagen Tiguan. N48-10012

Continuation for All Vehicles

  • Remove the bolts -5 and 6- on the steering gear.

Volswagen Tiguan. N40-10288

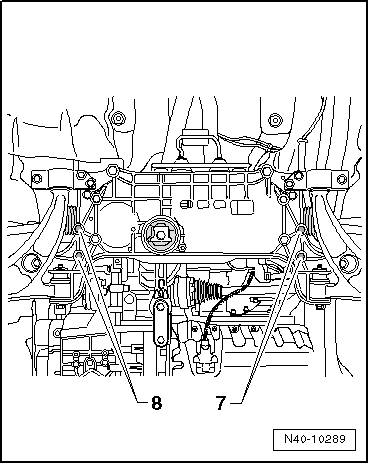

  • Remove the stabilizer bar bolts -7 and 8-.
  • Secure the subframe.
  • Disconnect the connector for the service interval extension to the oil pan.

Volswagen Tiguan. N40-10289

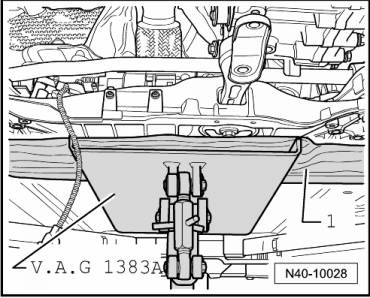

  • Place the Engine/Gearbox Jack -VAG1383A- under the subframe.
  • Place for example a block of wood -1- between Engine/Gearbox Jack -VAG1383A- and the subframe.

Volswagen Tiguan. N40-10028

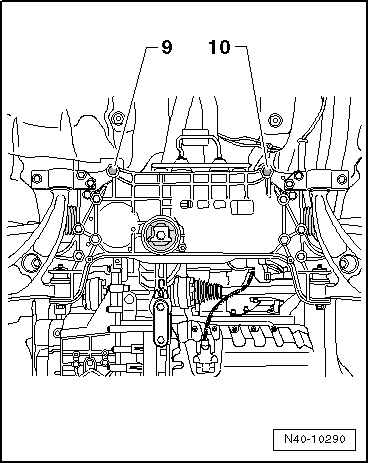

  • Remove the bolts -9 and 10- and slightly lower the subframe. Pay attention the electrical wiring while doing this.

Volswagen Tiguan. N40-10290

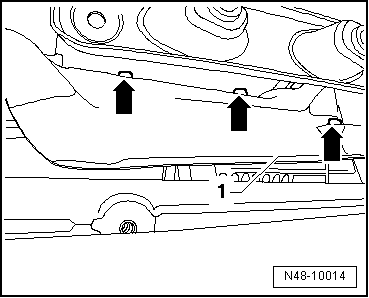

  • Remove heat shield -1- above exhaust system.
  • Remove bolts -arrows-.

Volswagen Tiguan. N48-10014

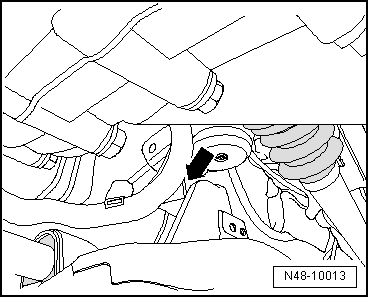

  • Remove cable guide from subframe -arrow-.
  • Unclip all other cable mounting points on steering gear.

Volswagen Tiguan. N48-10013

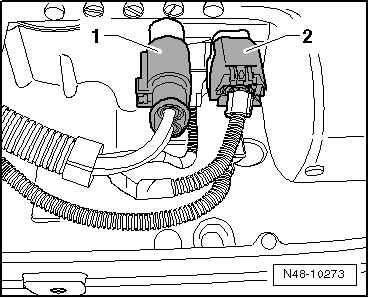

  • Disconnect the connectors -1 and 2- from the steering gear.
  • Carefully lower the subframe using Engine and Gearbox Jack -VAS6931-.

Volswagen Tiguan. N48-10273

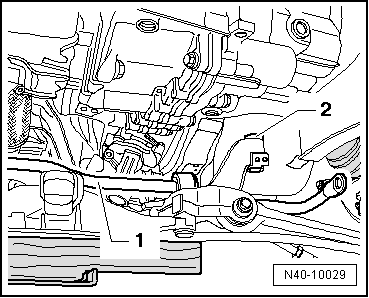

  • Now, lift the stabilizer bar -1- toward the front, over the subframe -2- and down, while turning the stabilizer bar slightly.
  • Lift down steering gear from subframe.

Volswagen Tiguan. N40-10029

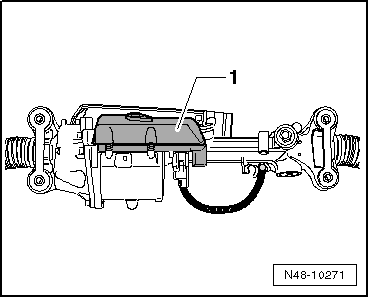

  • Set down steering gear as depicted in the illustration.

Volswagen Tiguan. N48-10271

This prevents damage to the control module -1-.

Installing

Install in reverse order of removal.

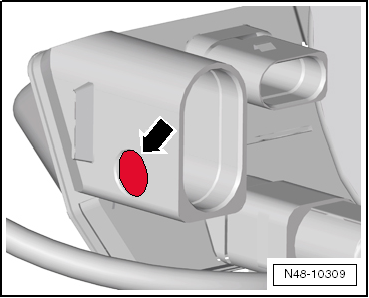

  • Make sure the white pressure membrane -arrow- is clean and not damaged.
  • If necessary, carefully clean the pressure membrane.

Volswagen Tiguan. N48-10309

Note

If the pressure membrane is damaged, then the steering gear must be replaced.

  • Connect the connectors -1 and 2- so that they audibly click into place.

The threaded sleeve must seat in subframe hole.

Note

  • Coat the seal on the steering gear with lubricant such as soft soap before installing the steering gear.
  • After placing steering gear onto universal joint, make sure that seal on steering gear makes contact on assembly plate without kinks and opening to footwell is correctly sealed. Ingress of water and/or noises may be the result.
  • Make sure sealing surfaces are clean.

Before fastening the bolts for subframe, position steering gear on subframe and fasten bolts for steering gear and stabilizer.

  • Install the lower noise insulation.
  • Bolt the universal joint to the steering gear.
  • Connect the battery.
  • Perform the Steering Angle Sensor -G85- basic setting using the Vehicle Diagnostic Tester.

Volswagen Tiguan. N48-10273

It is necessary to adapt the electro-mechanical power steering using the Vehicle Diagnostic Tester if new steering gear was installed.

  • Adapt the electro-mechanical power steering with the Vehicle Diagnostic Tester.

Chassis

Electromechanical power steering

01 - OBD-capable system

Electro-mechanical power steering

Functions

Adapting electro-mechanical steering

Follow the instructions on the screen.

Note

If the vehicle is equipped with park assist 2, then the Power Steering Control Module -J500- must be coded again. Refer to Vehicle Diagnostic Tester.

After installation, position of steering wheel must be checked with a road test.

If steering wheel is at an angle or a new steering gear was installed, vehicle must be aligned.

  • Perform a vehicle alignment.

Tightening Specifications

Component Tightening Specification
Mounting bracket to body
  • Use new bolts.
70 Nm + 180º
Stabilizer bar to subframe
  • Use new bolts.
20 Nm + 90º
Stabilizer bar to coupling rod
  • Use new nut
  • Counterhold at joint pin inner multi-point fitting
65 Nm
Ball joint to aluminum control arm:
  • Use new nuts
  • Tighten only in curb weight position.
60 Nm
Ball joint to sheet steel control arm
  • Use new nuts
  • Tighten only in curb weight position.
100 Nm
Shield to subframe
  • M6 bolt is self-tapping
6 Nm
Steering gear to subframe
  • Use new bolts.
50 Nm + 90º
Universal joint to steering gear
  • Use a new bolt
30 Nm
Shield to steering gear
  • M6 bolt is self-tapping
6 Nm
Tie rod end to wheel bearing housing
  • Use new nut
50 Nm
Exhaust system bracket to subframe

Tightening Specifications, Subframe to Body

Bolt Tightening Specification
M12 x 1.5 x 90
  • Use new bolts.
70 Nm + 180º
M12 x 1.5 x 100
  • Use new bolts.
70 Nm + 180º
M12 x 1.5 x 110
  • Use new bolts.
70 Nm + 90º

Tightening Specifications, Pendulum Support to the Transmission

Bolt Tightening Specification
M10 x 35
  • Use a new bolt
50 Nm + 90º
M10 x 75
  • Use a new bolt
50 Nm + 90º
M12 x 1.5 x 85
  • Use a new bolt
60 Nm + 90º
