Volkswagen Tiguan Service and Repair Manual: General Repair Information

General Information

The maximum possible care, cleanliness and proper tools are essential to ensure satisfactory and successful steering gear repairs. The usual basic safety precautions also, naturally apply when carrying out vehicle repairs.

A number of generally applicable instructions for individual repair operations, which are otherwise mentioned at various points in the workshop manual, are summarized here. They apply to this repair manual.

A description of design and function of the electro-mechanical steering can be found in Self Study Program 317 Electro-Mechanical Power Steering Design and Function.

A description of the design and function of the steering "APA" can be found in Self Study Program 399 Electro-Mechanical Steering with Axis Parallel Drive.

Steering Gear

  • Thoroughly clean connecting points and their surrounding areas before loosening.
  • When installing steering gear, make sure centering sleeves are correctly seated between the subframe and steering gear.
  • Place removed parts on a clean surface and cover them so that they do not get dirty. Use foil and paper. Only use lint-free cloths.
  • Install only clean parts: remove the replacement parts from their packaging just before installing them.
  • Use exclusively lubricants and sealants marked with part numbers.
  • Carefully cover or seal opened components if the repair is not performed immediately.

Seals and Gaskets

  • Always replace seals and gaskets.
  • After removing seals, inspect contact surface on housings and shafts for burrs and damage and repair if necessary.
  • Remove all residual sealant of fluid seals from sealing surfaces, no sealant residue must enter the steering gear housing when doing this.

Bolts and Nuts

  • Loosen and tighten the bolts and nuts of covers and housings in a diagonal sequence.
  • Do not cant but loosen and tighten especially sensitive parts in diagonal manner in stages, for example servo motor with control module.
  • Tightening specifications for unoiled bolts and nuts are given.
  • Always replace self-locking nuts and bolts.

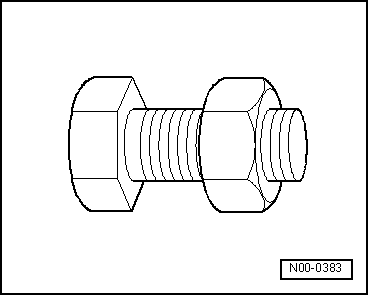

Volswagen Tiguan. N00-0383

Electrical Components

Surely everyone has been shocked at one time or another when coming into contact with a metal object. The reason for this is the build-up of static electricity in the human body. This charge can lead to functional problems by touching the electrical components of steering gear.

  • Touch a grounded object, such as, a water pipe or a vehicle hoist, before working on electrical components. Do not make direct contact on connector terminals.

Volswagen Tiguan. N00-10070

Guided Fault Finding, OBD and Test Instruments

  • Before performing repairs on the electro-mechanical steering gear, determine the cause of the damage as closely as possible using theVehicle Diagnostic Tester in the "Guided Fault Finding", "Vehicle Self-Diagnosis" and "Measurement" modes.
    Steering
    ...

    Steering Column and Steering Wheel
    Overview - Steering Column Note Welding and straightening work on supporting or wheel carrying components of suspension is not permitted. Always replace self-locking nuts. Always replace corrode ...
