Volkswagen Tiguan Service and Repair Manual: Drive Axles, Servicing
Volkswagen Tiguan Service and Repair Manual / Suspension, Wheels, Steering / Front Suspension / Drive Axles, Servicing
Overview - Drive Axles, Servicing
- Chapter "Drive Axle with CV Joint VL 107 Bolted"
- Chapter "Drive Axle with CV Joint VL107"
- Chapter "Drive Axle with Triple Roller Joint AAR3300i".
- Chapter "Drive Axle with Triple Roller Joint AAR3300i, 09M Automatic Transmission, 6-Speed, AWD".

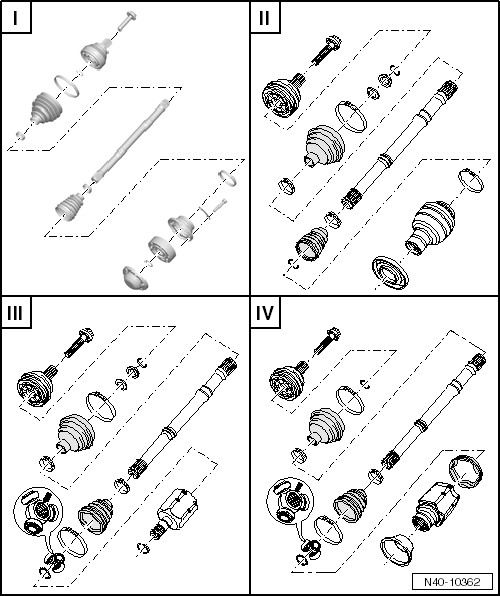

Difference of Drive Axles in Installed Condition
| VL107 (bolted) | VL107 (mounted) | AAR3300i | AAR3300i | |
| Diameter of inner joint in mm | 107 | 107 | - | - |
| Cover between inner joint and flange shaft | X | - | - | - |
| Inner joint inserted into transmission (automatic transmission only) | - | - | X | - |
| Inner joint placed on transmission (only automatic transmission with AWD) | - | - | - | X |
| Inner CV joint mounted on the transmission (manual transmission) | - | X | - | - |
Drive Axle Heat Shields

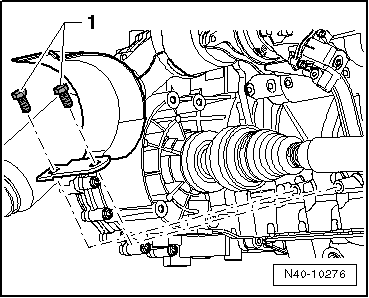

FWD Manual Transmission
| Component | Tightening Specification |
| Hex bolt -1- | 25 Nm |

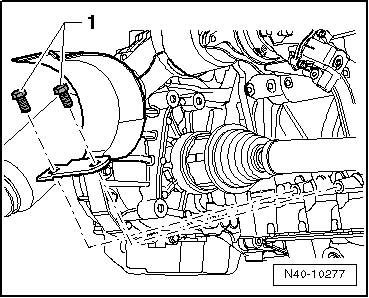

FWD 09M Automatic Transmission
| Component | Tightening Specification |
| Bolts -1- | 25 Nm |

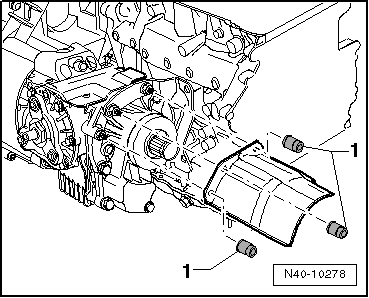

AWD
| Component | Tightening Specification |
| Nuts -1- | 20 Nm |
Drive Axles with Triple Roller Joint AAR3300i, Mounted in Transmission,
Removing and Installing
Special tools and workshop equipment required
Drive Axle Wedge Tool -T10161-
Drive Shaft Remover -T10520-
Torque Wrench 1332 40-200Nm -VAG1332-
Caution
When disassembling and performing repairs o ...
Drive Axle with CV Joint VL 107 Bolted
Overview - Drive Axle with CV Joint VL 107 Bolted
Bolt
There are different versions.
Allocation. Refer to the Parts Catalog.
WARNING
There are two types of twelve-point bolts, with and ...
