Volkswagen Tiguan Service and Repair Manual: Cavity Sealing

Cavity Sealing, Body General View

Note

The displayed areas are cavity-sealed and must be sealed again after completing the repair work.

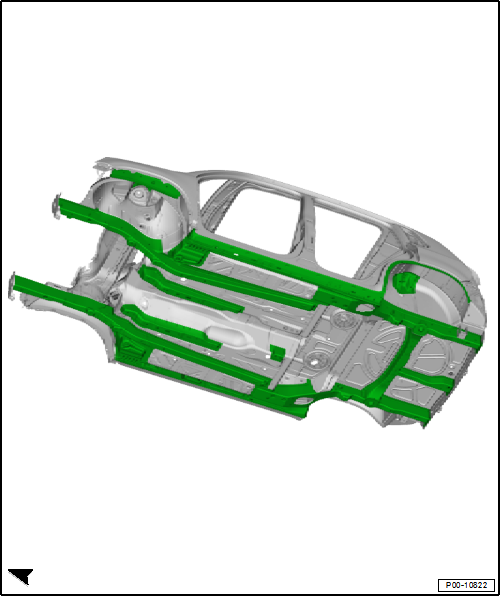

Cavity Sealing General View

Volswagen Tiguan. Cavity Sealing General View

Cavity Sealing, Body Front

Note

The displayed areas are cavity-sealed and must be sealed again after completing the repair work.

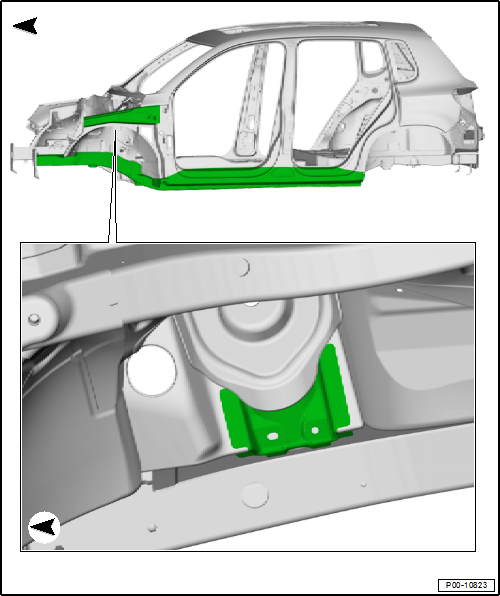

Cavity Sealing Side View

Left side shown, right side is a mirror image

Volswagen Tiguan. Cavity Sealing Side View

Note

The displayed areas are cavity-sealed and must be sealed again after completing the repair work.

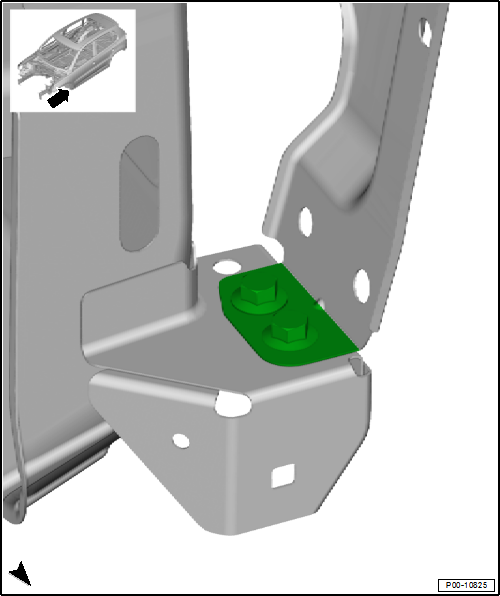

Cavity Sealing, Detailed View of Fender

Left side shown, right side is a mirror image

Volswagen Tiguan. Cavity Sealing, Detailed View of Fender

Cavity Sealing, Body Center

Note

The displayed areas are cavity-sealed and must be sealed again after completing the repair work.

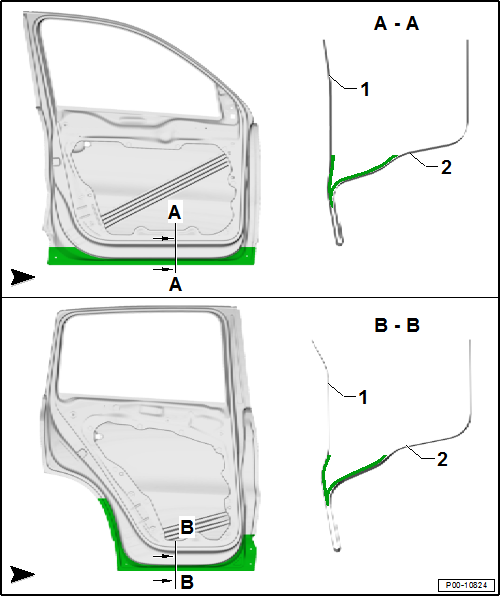

Door Cavity Sealing

The upper illustration shows the front door, the lower illustration shows the rear door.

Left side shown, right side is a mirror image.

Volswagen Tiguan. Door Cavity Sealing

  1. Outer Door Panel
  2. Inner Door Panel

Cavity Sealing, Body Rear

Note

The displayed areas are cavity-sealed and must be sealed again after completing the repair work.

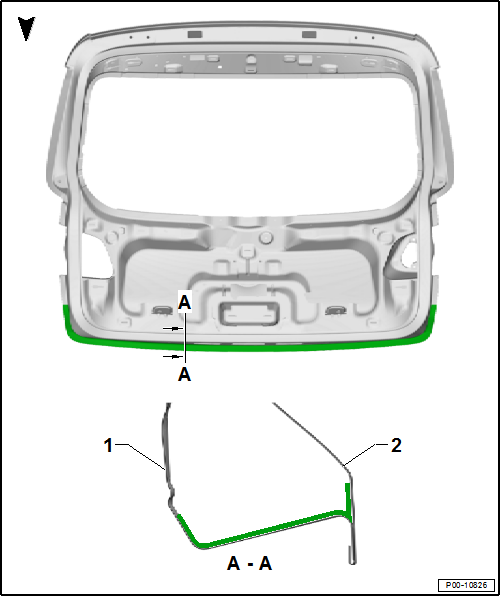

Rear Lid Cavity Sealing

Volswagen Tiguan. Rear Lid Cavity Sealing

  1. Inner Rear Lid Panel
  2. Outer Rear Lid Panel

Contrasting Colors

Contrasting Colors, Tiguan

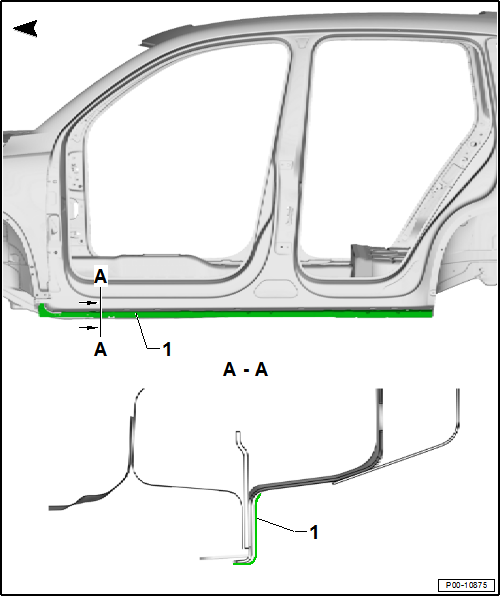

Contrasting Colors in the Side Sill Area

Left side shown, right side is a mirror image

Volswagen Tiguan. Contrasting Colors in the Side Sill Area

  1. Side Sill
    • Depending on the equipment/exterior paint; color: L-041 black or L-C9X Deep Black

Contrasting Colors, Tiguan, "CityScape"

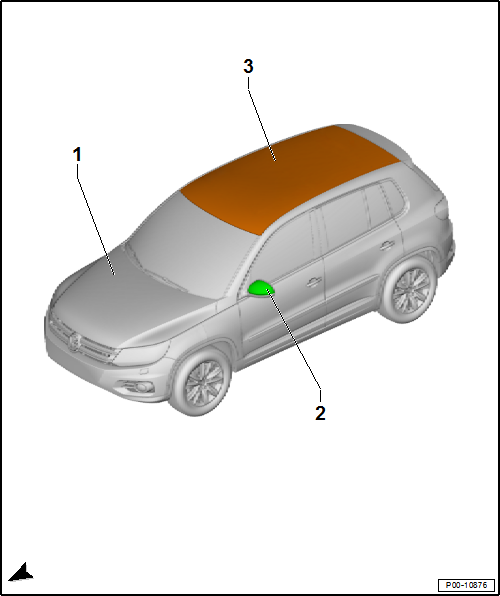

Contrasting Colors "CityScape"

Volswagen Tiguan. Contrasting Colors "CityScape"

  1. Entire Vehicle
    • Color: various colors
  2. Mirror Cap
    • Color: L-041 black
  3. Roof
    • Color: L-041 black

Note

On vehicles that are completely painted with the color L-C9X Deep Black, the roof is also painted with L-C9X Deep Black.

Edition: K0059112021 - 03/27/2015 - FU/RF - JY
