Volkswagen Tiguan Service and Repair Manual: Aqua Premium System

Definition:

  • Water-Based Solid Mixed Paint -LWM 083 ...-
  • Water-Based Metallic/Pearl Effect/Special Effect Mixed Paint -LWM 084/ 086...-
  • Water-Based Solid Base Paint -LWG 055 ...-
  • Water-Based Metallic Base Paint -LWG 056 ...-
  • Water-Based Pearl Effect Base Paint -LWG 057 ...-
  • Flop Control -LWM 085 386 A2-
  • System Components A -LWM 083 385 A3-
  • System Components B -LWM 085 387 A3-

Product Description

The Aqua premium system is an innovative water-soluble basepaint system. The mixing system contains all solid and effect color shades for vehicle repair paintwork.

Properties:

  • Easy and to quick process
  • Even impact alignment ensures high certainty of outcome
  • Short process times
  • Various application possibilities (interior, multiple-coat and multi-color coats)

Application Instructions

Base Surface

Suitable base surfaces:

  • Primed and filled surfaces (two-part HS filler)
  • Intact old paint
  • For plastic surfaces, Glazing Adhesion Promoter -ALO 822 000 10- + two-part HS filler (elasticized)
  • with Two-Part Plastic Adhesive Filler -LKF 696 009 A2-/-LKF 696 040 A2- insulated base surfaces on plastic surfaces
  • See special instructions → Anchor.

Pre-treatment of base surfaces:

  • Clean the factory or old paint or two-part HS filler thoroughly with Silicone Remover -LVM 020 000 A5- or Silicone Remover, Long -LVM 020 100 A5-.

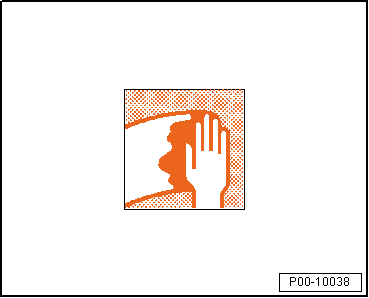

Volswagen Tiguan. P00-10038

  • Dry-sand with rotary sander and dust extraction, P500-600 grit.

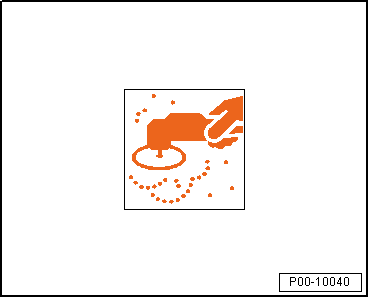

Volswagen Tiguan. P00-10040

  • Or "wet"-sand with P800-1000 sandpaper.

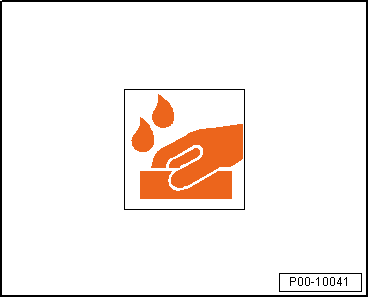

Volswagen Tiguan. P00-10041

  • Use a suitable cleaning agent before reworking to ensure a clean and residue-free surface.
  • Wipe off any residual silicone remover with a lint-free cloth, leaving no streaks.

Special Instructions

  • Sanded-through areas must be insulated with One-Part Wash Primer -LVM 044 007 A2-/-LVM 044 171 A2-. The sanded-through areas should not be larger than 5.0 cm in diameter.
  • When using the two-part HS filler, any bare areas must be insulated with Two-Part Wash Primer -LHV 043 000 A2- or One-Part Wash Primer -LVM 044 007 A2-/-LVM 044 171 A2-.

Standard Application Processing

Mixing vessels:

  • Plastic containers or tin-coated cans painted on the inside

Volswagen Tiguan. P00-10038

Strainers:

  • Filter watery base paint through water-tight, 125 um strainers before working with cup systems.

Additives:

(at a normal/high temperature and low humidity depending on the respective object size)

  • Additive for Aqua Premium -LVM 035 200 A3-
  • Additive for Aqua Premium -LVM 035 301 A3-
  • Use Aqua premium standard measuring stick.

Note

After adding additive, use the material within 24 hours.

Application type "coat"

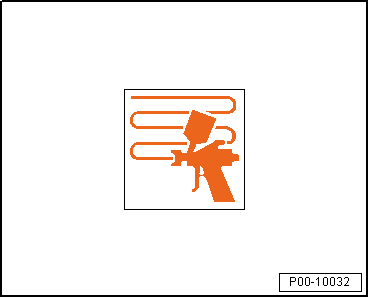

Volswagen Tiguan. P00-10032

  • Processing viscosity at +20 ºC (68 ºF) material temperature is the mixing viscosity for "Compliant" and "HVLP".

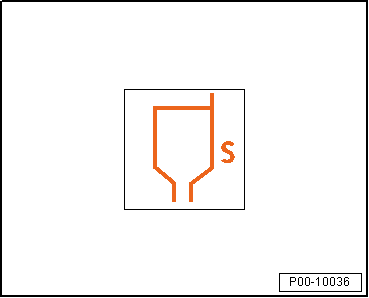

Volswagen Tiguan. P00-10036

  • For solid colors, add 10 % Additive for Aqua Premium -LVM 035 200 A3/LVM 035 301 A3- at +20 ºC (68 ºF) material temperature.
  • For metallic/pearl effect colors, add 20 % Additive for Aqua Premium -LVM 035 200 A3/LVM 035 301 A3- at +20 ºC (68 ºF) material temperature.

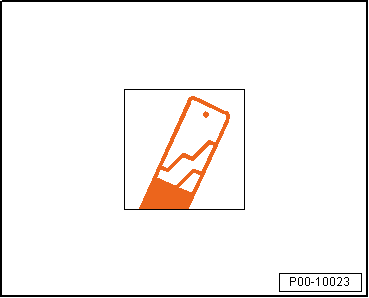

Volswagen Tiguan. P00-10023

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.2 to 1.3 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" WSB/1.3 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.
  • One application consists of 1.5 spray applications. Apply a normal spray application, then apply a "finish spray application"/effect spray application.

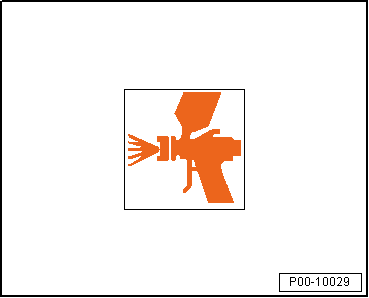

Volswagen Tiguan. P00-10029

Note

For colors with poor covering properties, after allowing for ventilation it may be necessary to apply another spray application ("wet" in "wet").

Volswagen Tiguan. P00-10032

Drying

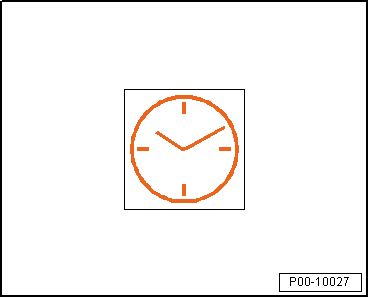

Volswagen Tiguan. P00-10027

The ventilation time for a clear coat application should be long enough for the surface to become completely matted.

Recommended layer thicknesses:

  • 12-25 um for solid colors
  • 10-15 um for metallic colors
  • 15-20 um for pearl effect colors

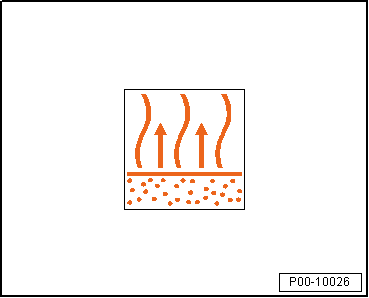

Volswagen Tiguan. P00-10026

For smaller surfaces, the following make it possible to reduce the ventilation time:

  • The painted surfaces can be applied more quickly by blowing them with blower nozzles (hand blowers or with stationary devices).
  • Blowing with a spray gun is also possible after waiting at least five minutes.

For larger surfaces, the following make it possible to reduce the ventilation time:

  • The painted surfaces can be applied more quickly by using stationary blowing devices (such as ceiling systems), infrared radiators or oven drying.

Three Layer Color Processing and Multi-Color Paintwork

Hardener:

  • Aqua Premium Hardener -LVM 045 000 A1-

Additives:

(at high temperature and low humidity)

  • Additive for Aqua Premium -LVM 035 301 A3-
  • Use Aqua premium measuring stick for 3 coat colors.

Volswagen Tiguan. P00-10027

Note

After adding additive, use the material within 24 hours.

Curing Time:

  • Solids colors at +20 ºC (68 ºF) room temperature for 90 to 120 minutes.
  • Effect colors at +20 ºC (68 ºF) room temperature for 45 to 60 minutes.

Application type "coat"

Volswagen Tiguan. P00-10032

  • Processing viscosity at +20 ºC (68 ºF) material temperature is the mixing viscosity for "Compliant" and "HVLP".
  • For three layer colors in primary shade only, add 5 % Aqua Premium Hardener -LVM 045 000 A1-.

Volswagen Tiguan. P00-10036

  • For solid colors, add 10 % Additive for Aqua Premium -LVM 035 301 A3- at +20 ºC (68 ºF) material temperature.
  • For metallic/pearl effect colors, add 20 % Additive for Aqua Premium -LVM 035 301 A3- at +20 ºC (68 ºF) material temperature.

Volswagen Tiguan. P00-10023

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.2 to 1.3 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" WSB/1.3 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • One application consists of 1.5 spray applications. Apply a normal spray application, then apply a "finish spray application"/effect spray application.

Volswagen Tiguan. P00-10032

Note

For colors with poor covering properties, after allowing for ventilation it may be necessary to apply another spray application ("wet" in "wet").

Drying

Volswagen Tiguan. P00-10027

The ventilation time for a clear coat application should be long enough for the surface to become completely matted (without blowing).

  • The ventilation time should take place assisted with blowing devices at 20-40 ºC (68º - 104 ºF ) for 5 to 10 minutes until the surface becomes completely matted.
  • The final ventilation time is at 60-65 ºC (140º-149 ºF) for 10 to 15 minutes. Let the foundation cool off before applying the effect.

Volswagen Tiguan. P00-10026

Note

For multi-color paintwork, the recommended tape is the "blue conture tape".

Reworking

Can be painted over with:

  • Effect color
  • Two-part HS clear coat up to maximum of 72 hours after applying the base paint

Processing interior paintwork without applying clear coat

Application:

  • Application areas are the vehicle interior, e.g. engine compartment and luggage compartment inner sides, where satin-finish and resistant surface without additional clear coating is desired.

Hardener:

  • Aqua Premium Hardener -LVM 045 000 A1-

Volswagen Tiguan. P00-10029

Additives:

(at a normal/high temperature and low humidity depending on the respective object size)

  • Additive for Aqua Premium -LVM 035 200 A3-
  • Additive for Aqua Premium -LVM 035 301 A3-
  • Use an Aqua premium measuring stick for the interior paintwork.

Curing Time:

  • Solid colors at +20 ºC (68 ºF) room temperature for 45 to 60 minutes
  • Effect colors at +20 ºC (68 ºF) room temperature for 30 to 60 minutes.

Application type "coat"

Volswagen Tiguan. P00-10032

  • Processing viscosity at +20 ºC (68 ºF) material temperature is the mixing viscosity for "Compliant" and "HVLP".
  • Add 10 % Aqua Premium Hardener -LVM 045 000 A1- to the color.

Volswagen Tiguan. P00-10036

  • For solid colors, add 10 % Additive for Aqua Premium -LVM 035 200 A3/LVM 035 301 A3- at +20 ºC (68 ºF) material temperature.
  • For metallic/pearl effect colors, add 20 % Additive for Aqua Premium -LVM 035 200 A3/LVM 035 301 A3- at +20 ºC (68 ºF) material temperature.

Volswagen Tiguan. P00-10023

  • Set spray nozzle (see manufacturer's information): "Compliant" 1.2 to 1.3 mm.
  • Set spray nozzle (see manufacturer's information): "HVLP" WSB/1.3 mm.
  • Set spray pressure (see manufacturer's information): "Compliant" to 2.0 bar.
  • Set atomizing pressure (see manufacturer's information): "HVLP" 0.7 bar.

Volswagen Tiguan. P00-10029

  • One application consists of 1.5 spray applications. Apply a normal spray application, then apply a "finish spray application"/effect spray application.

Volswagen Tiguan. P00-10032

Note

For colors with poor covering properties, after allowing for ventilation it may be necessary to apply another spray application ("wet" in "wet").

Drying

Let air dry overnight at +20 ºC (68 ºF) room temperature

Alternatively, the drying can take place at 60-65 ºC (140º-149 ºF) for 15 to 20 minutes (oven drying).

Special Instructions

Using the products

  • The spray devices should be suitable for use with water-soluble products; see manufacturer's information.
  • The mixing paints in this top coat series can only be used within the color tone formulas. When processing individual mixing paints on their own, major deviations from the information given in the application instructions are possible.

Volswagen Tiguan. P00-10027

Cleaning the tools

  • Rinse before and after using with Aquaplus Purified Water -LVW 010 000 A5-. Then rinse with Nitrocellulose Thinner -LVE 856 000 A3-.

Disposal

  • Collect liquid waste from water-soluble products and separate from liquid waste from conventional products. When mixing materials, disposal may no longer be possible, which is difficult and costly.

Personal Protective Equipment:

  • Note the safety data sheets
  • Wear the personal protective equipment during application

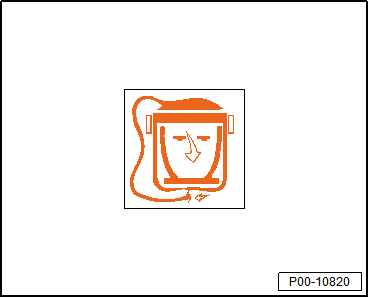

Volswagen Tiguan. P00-10820

Characteristics

Flashpoint: above +23 ºC (73.4 ºF)
VOC value: 2004/42/IIB(d)(420)420 The EU limit for this product (product category IIB.b) in ready-to-use form is a maximum of 420 g/L volatile organic compounds. The VOC-value of this product in ready-to-use form is a maximum of 420 g/L.

Storage

The guaranteed shelf life for each product is:

  • Water-Based Solid Mixed Paint -LWM 083 ...- 36 months from date of manufacture (exception: 24 to 36 months from date of manufacture for: Ocher -LWM 083 328-, Oxide Glaze -LWM 083 331- and Chestnut - LWM 083 332-), (exception: 48 months from date of manufacture for: Super-Deep Black -LWM 083 388 A2-).
  • 24 months from date of manufacture for Water-Based Metallic/Pearl Effect/Special Effect Mixed Paint -LWM 084 ...-.
  • 24 months from date of manufacture for Aqua Premium Solid Color/Base Paint - LWG 055 ...-.
  • 18 to 24 months from date of manufacture for Water-Based Metallic Base Paint -LWG 056 ...-
  • 18 to 24 months from date of manufacture for Water-Based Pearl Effect Base Paint -LWG 057 ...-
  • 24 months from date of manufacture for Additive for Aqua Premium -LVM 035 200 A3/LVM 035 301 A3-
  • 24 months from date of manufacture for Flop Control -LWM 085 386 A2-.
  • 24 months from date of manufacture for System Component A -LWM 083 385 A3-.
  • 24 months from date of manufacture for System Component B -LWM 085 387 A3-.

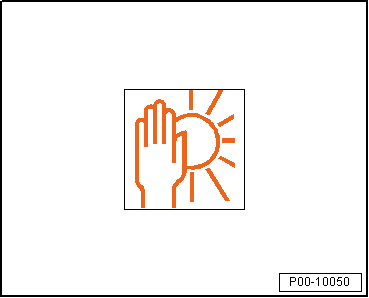

Volswagen Tiguan. P00-10050

Use all of the products no later than the date indicated on the label and store in original container at +20 ºC (68 ºF).

Storage Conditions

The optimal storage temperature is +20 ºC (68 ºF).

The preferred temperature is between +15 ºC and +25 ºC (59ºF and 77 ºF).

For short-term storage (a few days), between +5 ºC and +35 ºC (41º and 95 ºF) is acceptable.

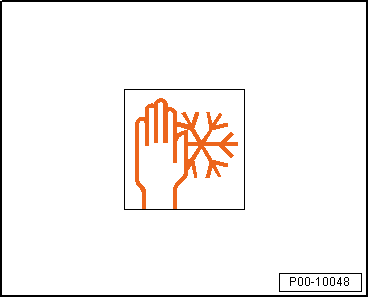

Volswagen Tiguan. P00-10048

    Aquaplus Touch-Up System
    Definition: Touch-Up Additive for Aquaplus -LVM 030 000 A2- Product Description The touch-up Additive for Aquaplus is especially suited for painting Aquaplus water-based base paint. This serves to ...

    Aqua Premium Touch-Up System
    Definition: Touch-Up Additive For Aqua Premium -LVM 035 100 A3- Product Description To achieve an optically flawless color shade transition in the blended area or adjacent parts, e.g. fender or do ...
