Volkswagen Tiguan Owners Manual: Air vents

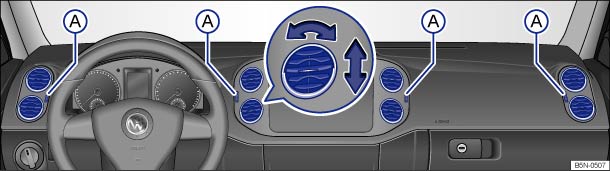

Fig. 150 In the instrument panel: Air vents.

Read and follow the introductory information and safety information firstIntroduction to the subject 

Air vents

To help ensure sufficient heating, cooling and ventilation in the passenger compartment, never close the air vents completely ⇒ Fig. 150Ⓐ .

  • To open and close the air vents ⇒ Fig. 150Ⓐ , turn the thumb wheel (A) in the desired direction. When the thumbwheel is turned all the way toward the , the air vent is closed.
  • Use the lever on the vent grille to adjust the airflow direction.

Additional air vents are located in the footwells as well as in the rear area of the passenger compartment.

Note

Do not place food, medications, or other heat-sensitive things in front of the air vents. Food, medications, and other things that are sensitive to heat or cold can be damaged or made unusable by the air flow from the vents.

The air coming out of the vents flows through the passenger compartment and out through vents below the rear window. Do not cover these slots with clothing or other things.
